3, Functional description of each part:
1. Unwinding Department:
1. The unwinding adopts a shaftless pneumatic feeding rack, which is convenient for single person operation. Adopting a special inflatable shaft form, it does not damage the inner wall of the tube core.
2. There are three modes for freely switching the unwinding tension: pressure sensor closed-loop automatic constant tension control mode, pressure sensor free open-loop automatic constant tension control mode, and manual tension.
3. The unwinding diameter is automatically detected by the proximity switch at the unwinding transmission shaft, without the need to input material thickness. The residual unwinding diameter can be set to automatically slow down and stop, making it convenient for the next coil to be received.
4. Equipped with a mechanism for manually adjusting the release and tightening edges, with an adjustment range of ± 10mm.
5. The automatic deviation correction system automatically corrects the edge of the film or paper.

II. Traction Department:
1. The traction roller is driven by a 3.7KW servo motor.
III. Waste edge recycling device:
Use a fan to blow out the waste and waste materials, and the customer will equip a mesh box for collection.

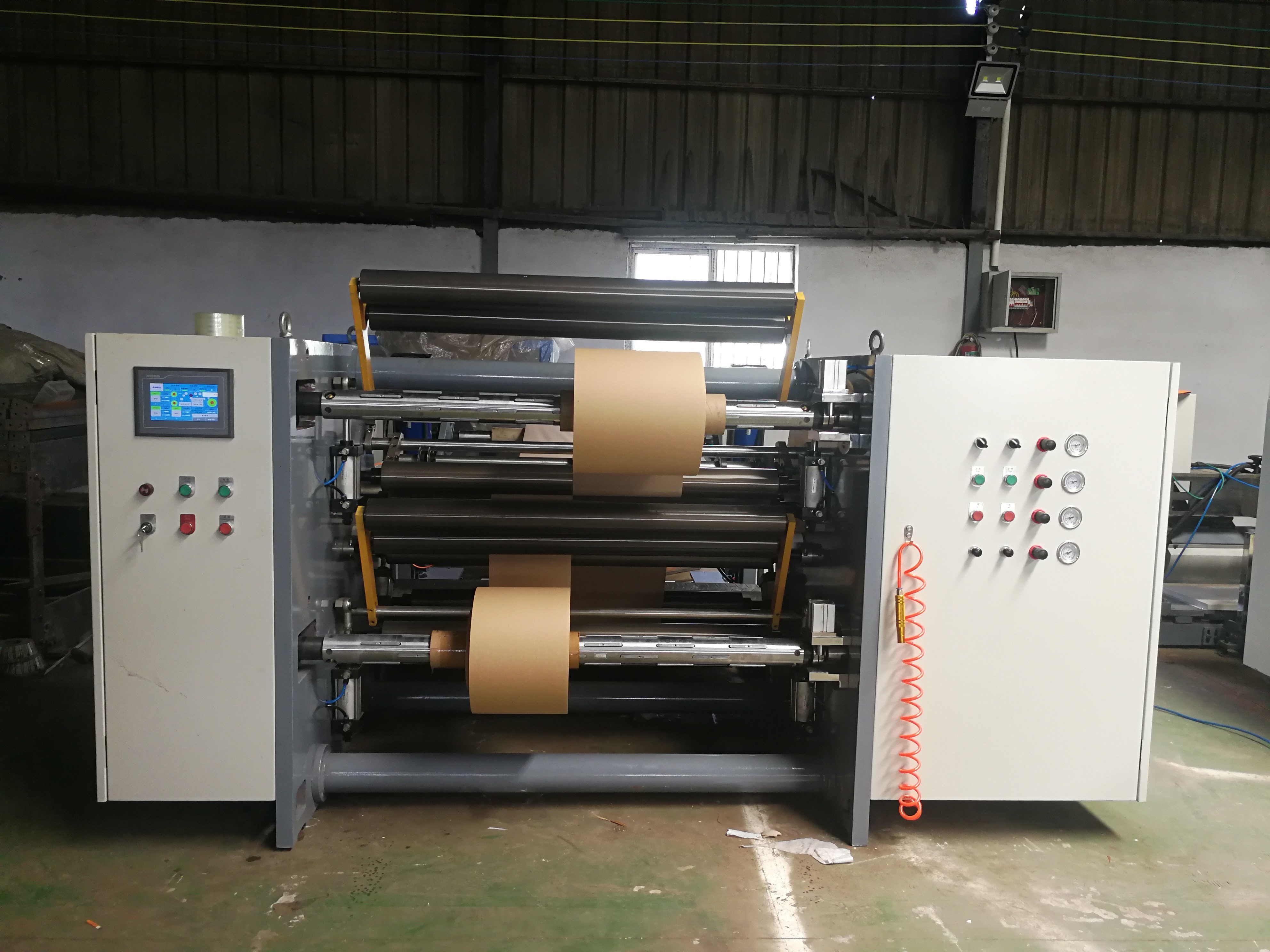

4. Winding mechanism: (The left or right end discharge of finished products is determined by the customer when ordering)
1. Use both upper and lower axes to independently roll the cut material.
2. The upper and lower winding shafts each have one 3.7KW servo motor to drive the pneumatic slip shaft. The winding tension is controlled by two Japanese SMC electric control proportional valves, and the PLC automatically controls the tension based on the current coil diameter, so that there is no material thickness factor when multiple slits are cut. All coil end faces are flat, and the flatness of the disc surface is freely selected by the pneumatic pressure roller and the self weight pressure roller. The tightness of the inner and outer layers of the finished coil is controllable, which is a spiral winding method. As the winding diameter continues to increase, the PLC automatically controls the speed of the winding servo motor to decrease.

6. The slitting knife adopts a round knife for slitting (6 pairs), with an optional air knife (320 yuan per piece)

The touch screen adopts Beijing Kunlun Tongshi 7-inch

Main electrical appliances; 3 Hongyuan drives, Siemens PLC from Germany

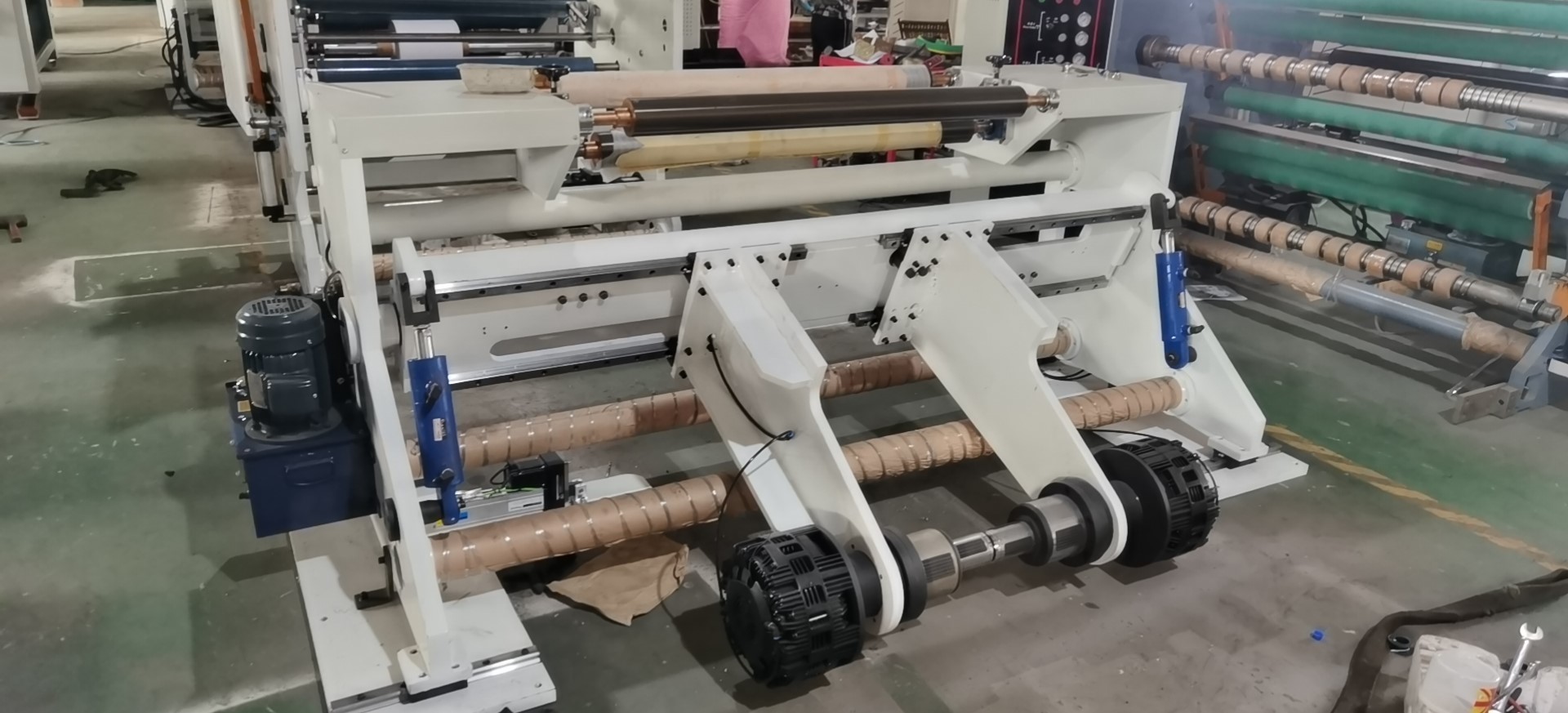

Shaftless discharge rack; Hydraulic automatic feeding rack, 1 hydraulic station, 4 oil cylinders, 8 guide rails, 1 pair of air brakes, 1 pair of top cones, 3 aluminum rods, and 1 set of bat correction
