HJ-C1600-III Fully Automatic Tension Slitting Machine,350meters/minute Maximum speed,steel slitting machine

Ask Lasest Price
Brand Name :	HJ
Model Number :	HJ-C1600
Certification :	Ce
Price :	70000dollars
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1 tower /30days
Delivery Time :	four weeks

Add to Cart

Product Details
Company Profile

HJ-C1600-III Fully Automatic Tension Slitting Machine,350meters/minute Maximum speed,steel slitting machine

HJ-C1600- III three servo fully automatic tension slitting machine

1, Parameter indicators:

1. Material types: PET, BOPP, BOF, PE, OPP/self-adhesive, paper, non-woven fabric, printing composite and other roll like materials;

2. Material thickness: 0.012-0.5mm (film); 20-450g (paper)

3. Maximum width of raw materials: 1600mm

4. Roll surface width: 1650mm

5. Cutting width: 20-1600mm

6. Reeling tube core: 3 "paper tube; using 2 Duluo inflatable shafts

7. Maximum diameter of winding: 800mm

8. Maximum speed: 350 meters/minute

9. Cutting speed: 10-350 meters/minute

10. Total power supply: 23KW

11. Total weight: approximately 4800KG

12. External dimensions: length 2414, width 3890, height 2120mm

Backup configuration:

Part Name	Specification and model	number	brand
45 # steel frame	Wall panel net thickness 40mm	1 pair
3-inch slip shaft	Plating Luo	2 pieces
Main traction rod	φ100*1650mm	1 piece
Main traction rubber roller polyurethane	φ100*1650mm	7 pieces
Hard alumina guide roller	Φ90*1650mm	6 pieces
Winding servo	7.5KW	2sets	Beauty Department
Traction servo	7.5KW	1set	Beauty Department
drive	7.5kw	3units	Shenzhen Hongyuan
Waste blowing edge fan	1.5KW	1unit	Wuxi
bearing		1batch	HRB
pneumatic components		1batch
Cutting using a straight knife		6 pairs
Master PLC programmable controller	CPU224XP	1 piece	Siemens
7-inch true color touch screen	TPC1061Ti	1 piece	Beijing Kunlun Tongshi
proximity switch		1 piece	Japan OMRON
Low Voltage Apparatus		1 batch	schneider
switch power supply	S100-24	1 piece	mean well

3, Functional description of each part:

1. Traction Department:

1. The traction roller is driven by a 7.5KW servo motor.

2. Waste edge recycling device:

Use a fan to blow out the waste and waste materials, and the customer will equip a mesh box for collection.

3. Winding mechanism: (The left or right end of the finished product is determined by the customer when placing an order)

1. The cut material is independently wound using both upper and lower axes, and the slitting knife uses a circular knife for slitting (6 pairs)

2. The upper and lower winding shafts each have one 7.5KW servo motor with pneumatic expansion shaft. The winding tension is automatically controlled by Siemens PLC based on the current coil diameter, ensuring that the finished material is neat when multiple slits are cut. All coil end faces are flat, and the flatness of the disc surface is freely selected by the pneumatic pressure roller and the self weight pressure roller for cutting. The tightness of the inner and outer layers of the finished coil is controllable, which is a spiral winding method. As the winding diameter continues to increase, the PLC automatically controls the speed of the winding servo motor to decrease.

5. Discharge device

Adopting a shaftless hydraulic automatic feeding structure

(1) 1 set of analog correction motor

(2) Guide rail 25 model 4 pieces

(3) One pair of high-quality steel is used for the 40 thick memorial archway

(4) 1 pair of lifting swing arms

(5) Cylinder 140X63 1 pair

(6) The discharge brake adopts one pair of air brakes

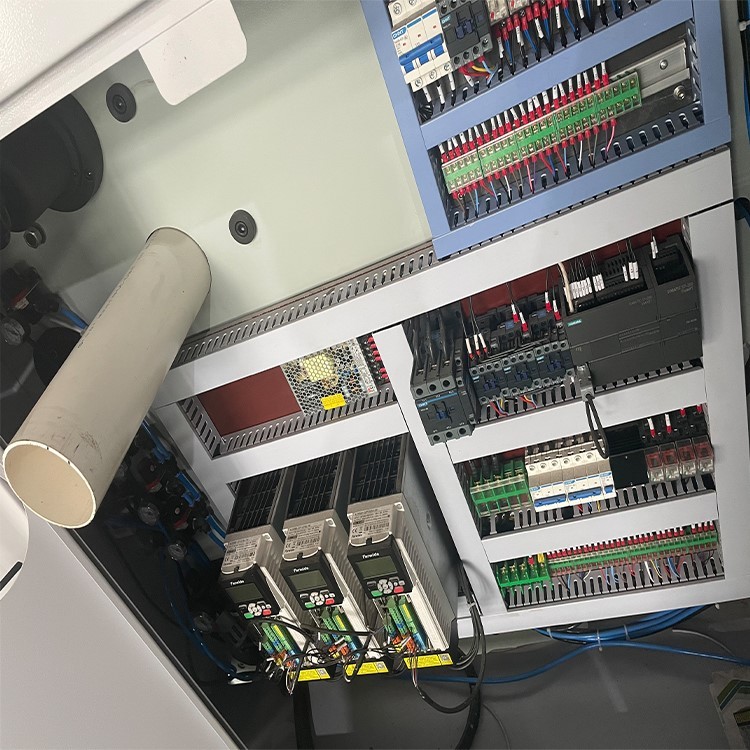

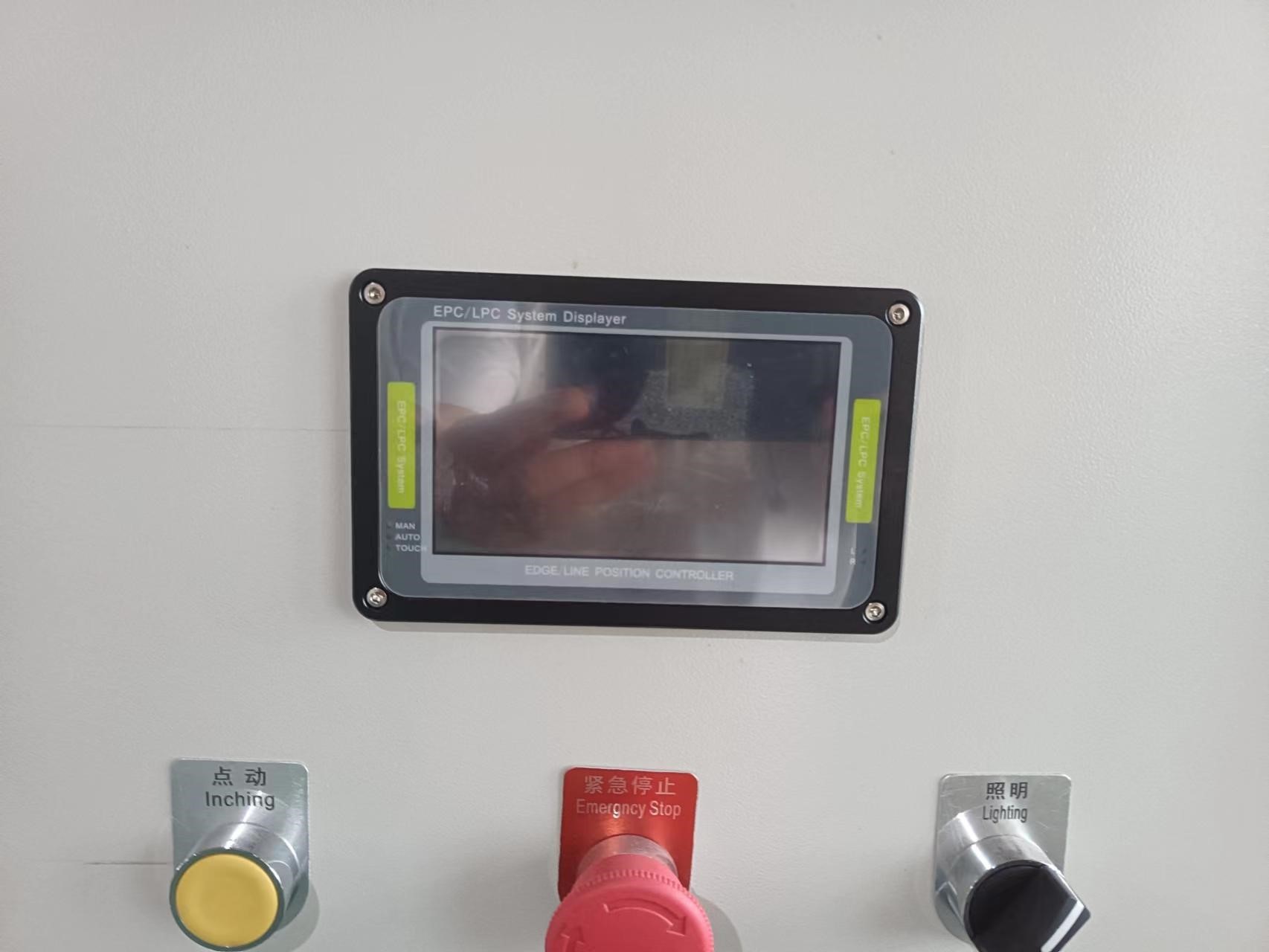

Electrical equipment adopts

Chint Group is used for low-voltage electrical appliances, Snyder is used for button switches, Siemens is used for PLC, and the operating system of the whole machine is controlled

4, Machine Part Location
