HJ-CI81400 High Speed Flexo Printing Machine 380-800mm Length Of Printing

HJ-CI81400 HIGH SPEED CI FLEXO PRINTING MACHINE

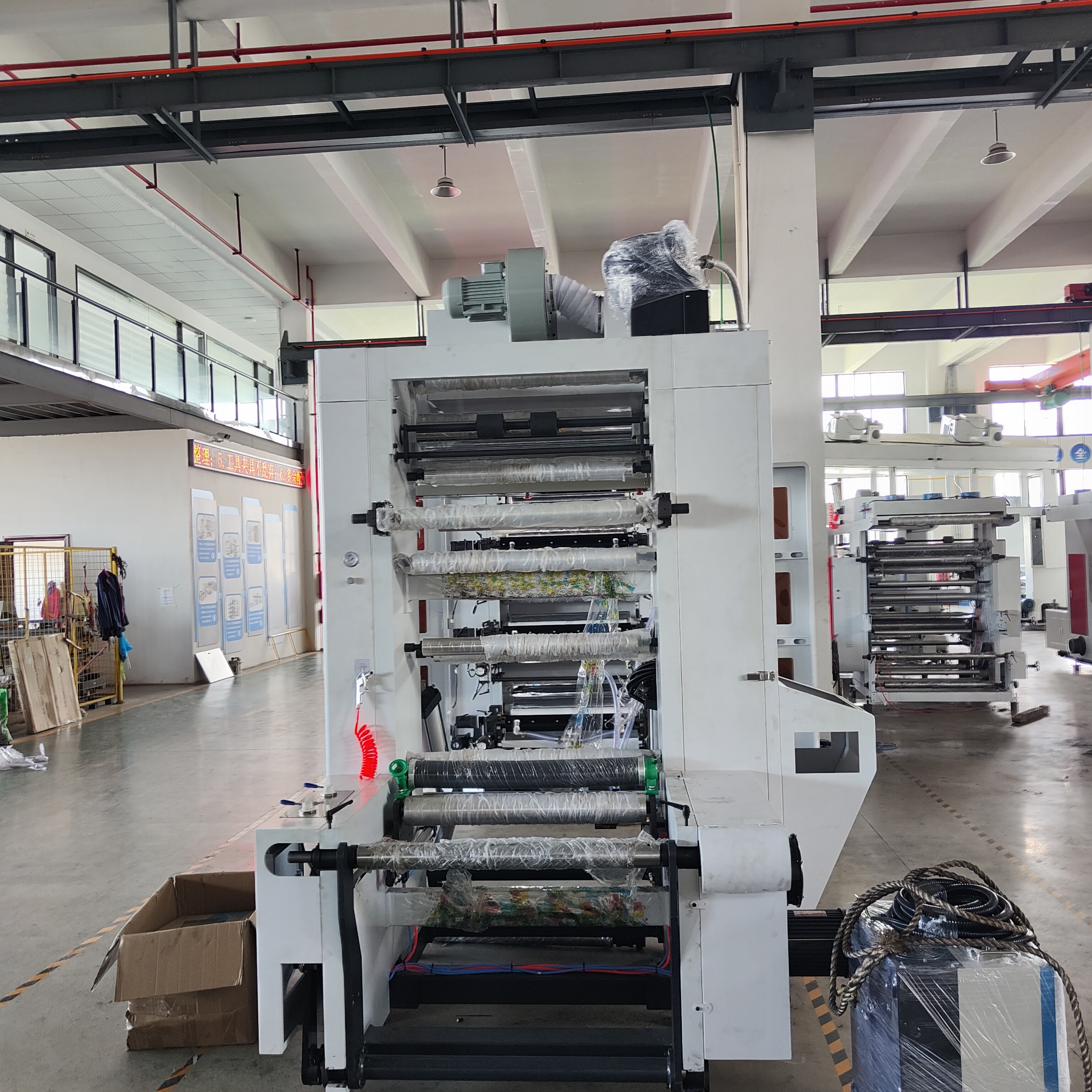

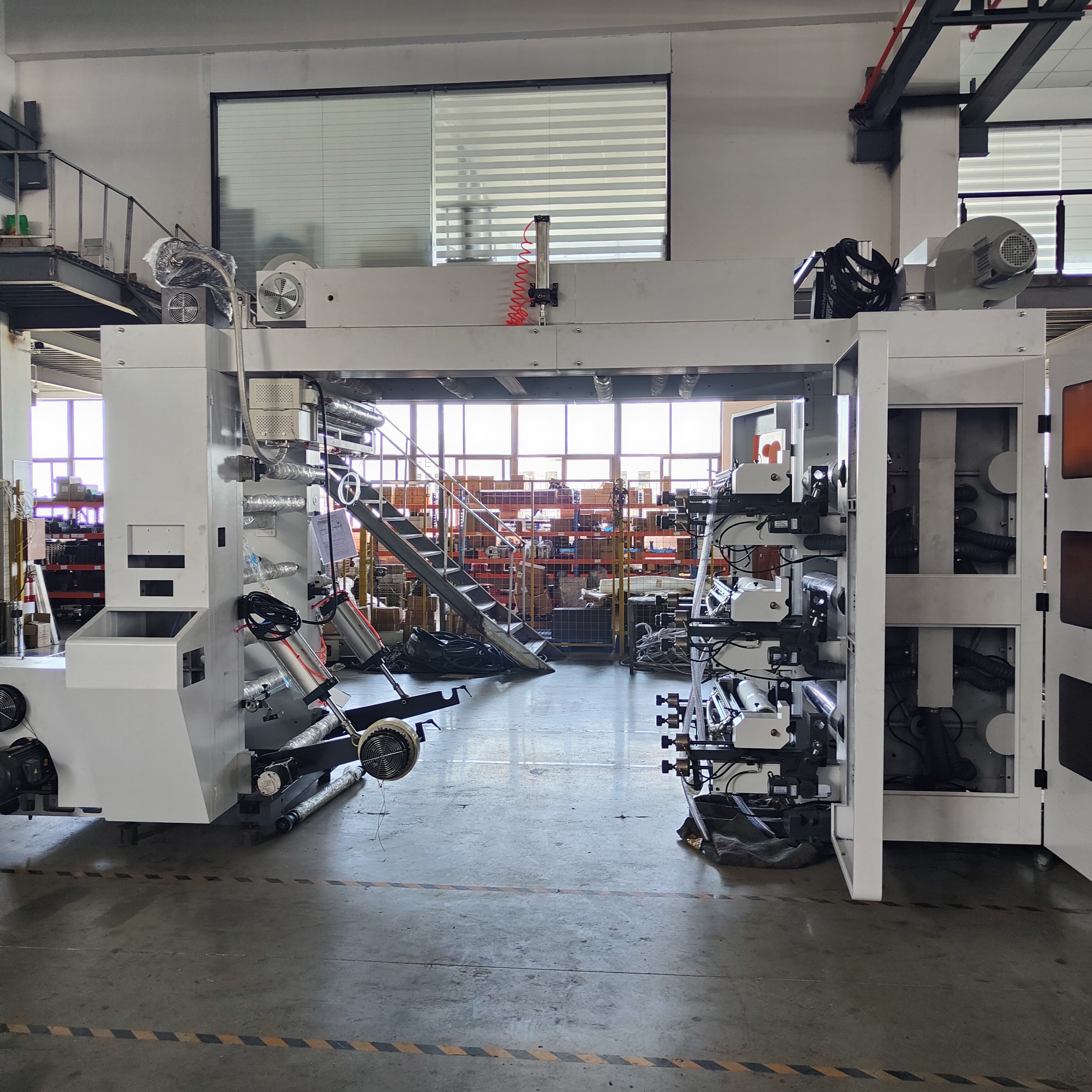

hoto for reference

FEATURES:

The frame of the machine is reinforced to avoid vibration while operating in high speed.
Precise teeth belt drive; provides a silent operating environment.
Precise chamber doctor blade chamber system with ceramic anilox roller, suitable for superfine printing quality.

4.Newly designed wind drying system for high speed operation.

5.Electric control by using PLC(SIEMENS) with full color touch-screen type human machine interface (HMI)

6. Register Precision:+-0.1mm(PLC control)

7.All rotating rollers are treated with dynamic balance adjustment.

8. Machine with high speed servo EPC control system

9.Machine with printing cylinder hoist

Main Technical Parameters:

1)Main Parameters
Model	HJ-CI 81400
Max. Width of Material	1400mm
Max. Width of Printing	1350mm
Printing Material	Roll film/paper/woven
Printing Color	8 colors
Length of Printing	380-800mm
Max. Machinery Mechanical Speed	300m/min
Speed of Material Printing	10-280m/min(different material speed a little different)
Thickness of Plate	1.7mm (Resin plate)
Machine Weight	20000kgs
Machine Dimension (L×W×H)	9m×2.5m×4m
Voltage	380V,3PH,50HZ
Machine top with guardrail	1set
Hoist for printing cylinder loading and unloading	1set
Machine base	95mm solid casting iron-ht 250
2)Unwind Unit
Max.Width of Printing	1350mm
Max.Dia. of Unwind	￠1200mm
Unwinder type	Pneumatic auto loading,magnetic powder 10kg,auto tension
Unwinder EPC	Servo Motor Control
Axis Core Diameter￠	76mm
3)Traction Unit
Constitution of Traction	Aluminum roller, Chrome plated Roller
Traction Zones	2 Zones
Traction motor-servo motor	*3.7kw2pcs**
4)Printing Unit
Central drum	￠1800mm
Girth of Printing Cylinder	380-800mm (Equipped with one set printing cylinder for free
Material of Plate	Resin plate 1.7mm
Principle of Work	High precision gear transmission system
Adjust of Registration	Motorised horizontal and longitudinal registration system
Overprint Precision(mm)	+-0.1mm
Ceramic Anilox Roller	8pcs (Murata brand,Japan)
Closed chamber Doctor Blade	8SETS
Automatic Ink Circulation+fast washing sytem	1set
human-computer interface	1set
Printing cylinder separated with plate	PNEUMATIC
Adjust cylinder entry and exit	Manual+motors
Video inspection/camera	1set
Corona treater(china brand)	1set
5)Heating and Drying Unit (electric heating+IR heating)
Type of Heating and Drying	Blowing First Then Heating
Power of Heating	70kw
Drying System	Separate Drying System+Central Exhaust System
Dryer length	4m

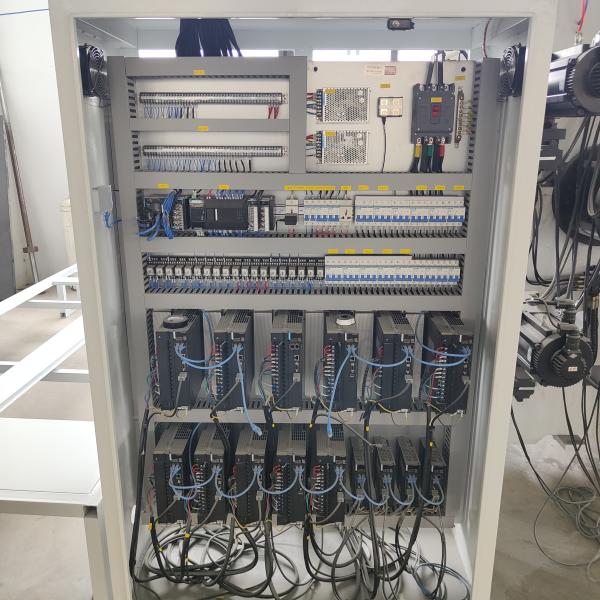

6)Electrical Parts
Main motor-servo motor	22kw
Ink-Transfer Motor with fan	8pcs
Horizontal registration motor	8pcs
Vertical registration motor	8pcs
cylinder entry and exit motor	16pcs
7)Rewinder Unit
Max Width of Material	1400mm
Max.Dia of Rewinder	￠1200mm
Rewinder type	Pneumatic auto unloading
Rewinder motor-servo motor	5.5kw
Banana roller	1pc
The Receiving Shaft	Air Shaft
Axis Core Diameter	￠76mm

Main Configuration List:

Inverter	YASKAWA
Main motor	SIEMENS
PLC	SIEMENS
Touch human-machine Interface	SIEMENS
LOW VOLTAGE ELEVTRICL APPLIANCES	SIEMENS BRAND
Ceramic anilox roller	MURATA/YUNCHENG
Bearing	Main bearing:LYC One direction bearing: ASNU (Germany)
Ink motor	MAILY
Chamber doctor blade	China
Video Inpection	PUSAI

spare parts free:

	Name of the spare parts	Quantity
1	Tool Box	1 set
2	1-10# screwdriver	1 pcs
3	oil gun	1 pcs
4	Inner Hexagon Spanner	1 set
5	Switches&buttons	2 pcs
6	Contactor	2 pcs
7	heating tube	2 pcs
8	Relay	4pcs
9	Printing cylinder bearing	4pcs
10	Air faucet	5pcs
11	Anilox roll gear	2pcs
12	Sealing tape in doctor blade	10pcs
