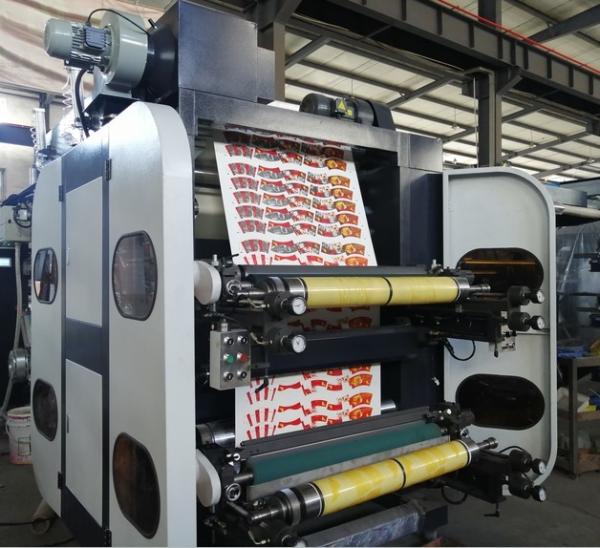

HJ-800 Flexographic Printing Machine 750mm 800mm Width 280-1200mm

Product Categories

Ruian Haijing Machinery Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	HJ
Model Number :	HJ-800
Certification :	ce
Price :	6000dollars
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1 tower /30days
Delivery Time :	four weeks

Add to Cart

HJ-A4 color 800 high-speed paper cup flexographic printing machine

MACHINE DETAIL TECHNICAL PARAMETER.

1)主要参数MAIN PARAMETER
机器型号: MACHINE MODEL	HJ-A4800
过料宽度: MAX.MATERIAL WIDTH	800mm
印刷宽度: MAX.PRINTNIG WIDTH	750mm
承印材料: SUITABLE FOR MATERIAL	卷筒纸PAPER
印刷颜色:COLOURS	4色 4COLOURS
印刷长度 PRINTING LENGTH	280-1200mm
机械速度 MACHINE SPEED	120米/分
印刷速度 PRITING SPEED	80-100米/分
版材厚度 PLATE THICKNESS	1.7mm
双面胶厚度 TAPE THICKNESS	0.38mm
电源 VOLTAGE	3P 380V 50HZ
墙板厚度 Machine base thickness	75mm
2)牵引部分 TRACTION UNIT
组数ZONE	2组
牵引压轮 TRACTION PRESSING WHEEL	气动式 CYLINDER TYPE

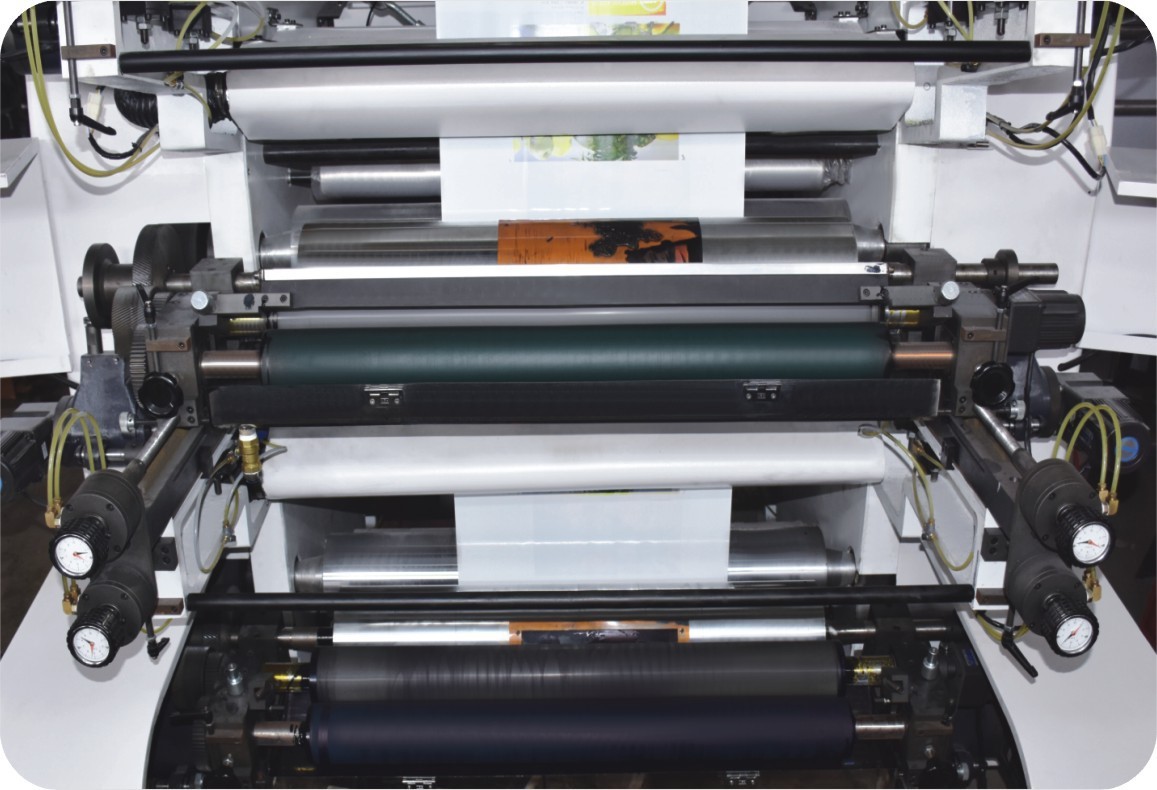

3)印刷部分 PRINTING UNIT
网纹辊 ANILOX ROLL	陶瓷网纹辊:4条 CERAMIC ANILOX ROLL 4PCS
版辊周长 PRINTING CYLINDER	标配400mm以内(根据客户不同要求,自己选择280-1200mm) STANDRAD(LESS THAN 400MM,ACCORDING TO CLIENT REQUEST,CAN EXTRA TO PAY FOR 280-1200MM)

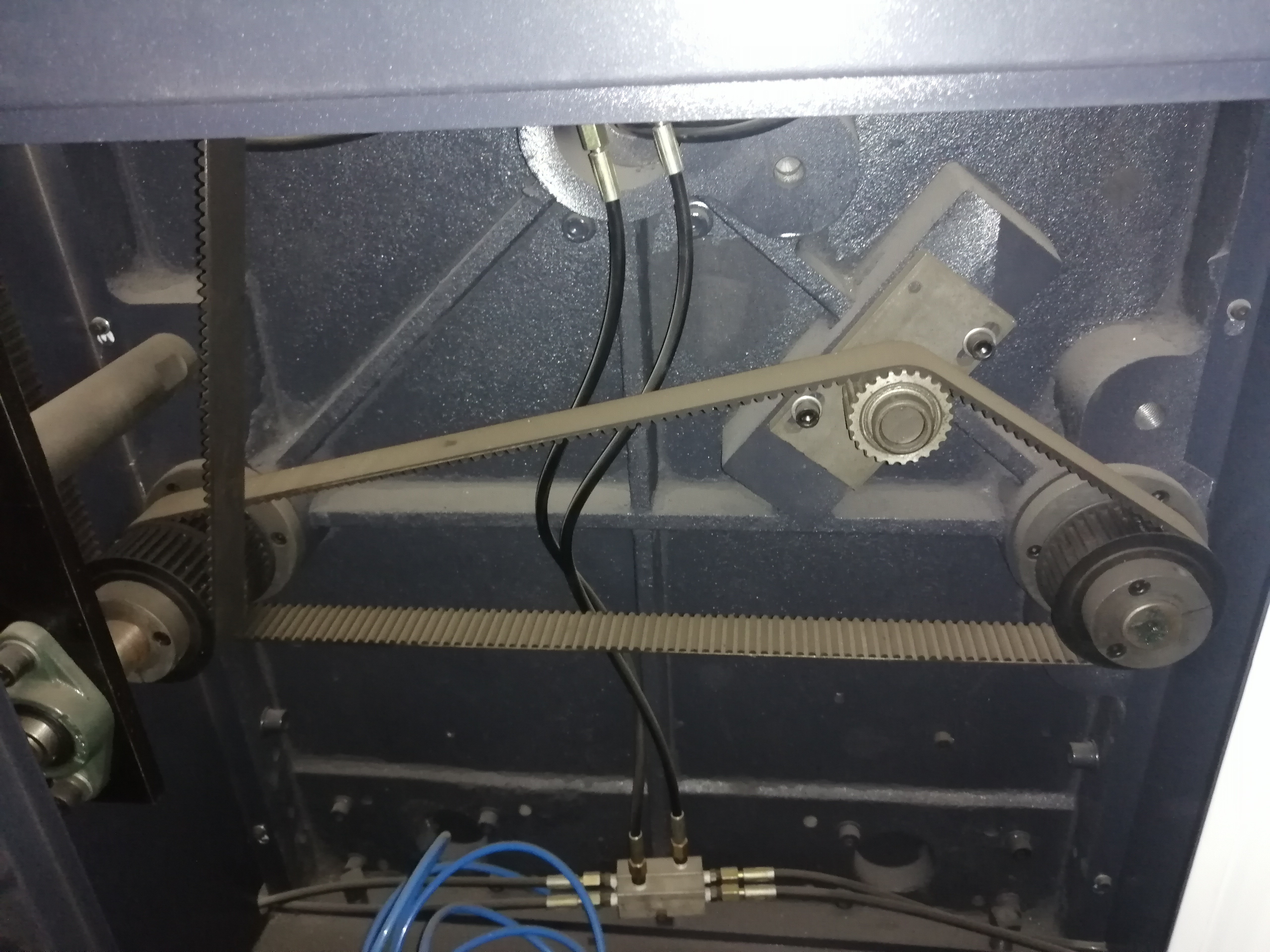

传动方式 DRIVING TYPE	同步带+高精度斜齿轮驱动 TIMING BELT+HIGH PRECISION HELICAL GEAR DRIVING
套色方式 ADJUSTING OF REGISTER	手动 MANUAL
套色精度 PRINTING PRECISION	+-0.15mm
起落版调节 PLATED-GLUED ROLLER ADJUSTING	液压起落版(水平式) HYDRAULIC TYPE
4)加热烘干部分HEATING AND DRYING UNIT
TYPE OF HEATING AND DRYING	ELECTRIC TYPE
HEATING POWER	30kw
风机 FANS	2.2KW*2pcs
5) ELECTRIC PARTS
MAIN MOTOR(INVERTER MOTOR)	3.7kw
INK MOTOR WITH FAN	4pcs
VERTICAL REGISTER MOOTR	4pcs
HORIZONTAL REGISTER MOTOR	4pcs

Product Tags:

HJ-800 Flexographic Printing Machine
