HJ—2000A型电脑高速分切机
HJ—2000Acomputer high-speed slitting machine
一,用途:Suitable for :
本机适用于多种卷筒包装纸张/无纺布/PET/PVC多种卷筒包装材料的分切.如各类纸张30-400g/m2(双胶纸,纸袋纸,白板纸,特种纸,淋膜纸等),纸塑复合材料,无纺布材料,复合材料等.
This machine suitable for a lot of paper,such as 30-400g/m2,paper&film laminated,PET/PVC etc best jumbo roll cutting
machine.
二,性能及特点:Characteristic:
- 该机采用伺服电机三电机同步控制,自动锥度张力,中心表面卷取方式；
Machine use servo three motor synchronize control, auto tape
tension,center and surface rewinding together；
2,本机采用变频调速,保持加速中平稳运转；
Machine use frequency adjust speed, keep stable running when speed
up；
3,自动计米,自动停机,报警等功能；
auto counter quantity, auto fixed length, auto machine stop when
had alarm , auto tension control etc function.
4,收卷采用A,B气胀轴结构,装卸操作方便；
Feeding roll use air shaft use 3#(76mm paper tube core)
5,放卷采用光电式纠边方式；
Rewinding use photocell control edge position control way
6,圆刀纵切废边自动排放装置；可选配全自动调刀
Circular knife slitting waste edge of roll, and it’s auto let out
by fan
7,无轴液压式放卷配置.
Automatic Hydraulic shaftness unwinding part
| 机型 | Model | 2000mm |
| 分切厚度 | Slitting thickness | 30g/m2~400g/m2
|
| 原料放卷最大直径 | Raw material Unwinding Diameter | φ1500mm
|
| 原料收卷最大直径 | Raw rewinding max.diameter | φ1000mm
|
| 分切原料最大宽度 | Slitting Max.Width | 40-2000mm
|
| 收卷气胀轴直径 | Rewinding air shaft diameter | φ76mm/ 2pcs
|
| 分切精度 | Slitting Precision | ±0.2mm
|
| 运行速度 | Slitting Speed | 50-400m/min
|
| 总功率 | Total Power | 38kw |
| 外型尺寸 | Machine Size | 4500×3600×2250mm
|
| 重量 | Machine Weight | 7000kg |
| 机身颜色 | Machine cove color | main white and black
|
四,机器配置:Machine Configuration:
1.放卷部分:放卷配置自动式液压无轴上料放卷结构
- 机架采用50#优质钢板结构.左右移动采用直线导轨.
- 左右移动采用超声波纠偏系统,纠偏采用中国产 1套
- 张力控制:张力采用磁粉控制20kg 2只
- 放卷轴采用3英寸和6英寸通用结构 2只
- Unwinding :unwinging part use Hydraulic shaftness
- Machine rack use steel structure. Move around use linear guide.
(2)Move around use static type correction system.EPC use
China.
(3)Tension control:tension use brake control 20kg 2sets
(4)unwinding core use 3-6inch 2pes
2.主机部分:机架采用优质喷塑钢板结构
1)驱动和传动机构:
- 主动采用电机与减速轮速比相结合方式
- 主电机采用中国产上海丹马伺服电机11KW
- 变频器采用国产宏远品牌11kw
2.Main Engineer(Surface friction type):Rack use high quality
casting structure
1) Driver and drive mechanism:
(1)Capstan roll use motor and reducer rate combining way
(2)Motor useChing servo motor(11KW) 1set
(3)Frequency converter use China brand farwind 11kw
2)牵引装置:
- 结构型式:主动牵引气动压紧方式
- 驱动方式:主电机带动主传动轴,主轴带动主动辊牵引
- 压紧方式采用气缸控制
2)Traction equipment:
- Structure type: Active traction pneumatic press roller way
- Driver way: main motor drive main drive roll, main axle drive main
traction roll
- Press way use pneumatic control

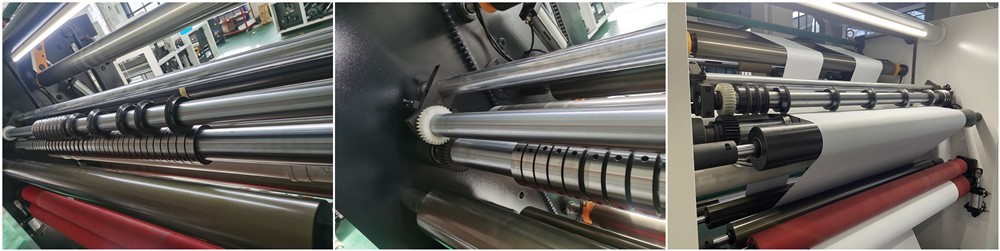

3)分切装置:
- 采用圆刀分切装置结构.全自动调刀为选配结构
- 圆刀采用上海,可任意手动调节 10付
- 分切精度:±0.2mm

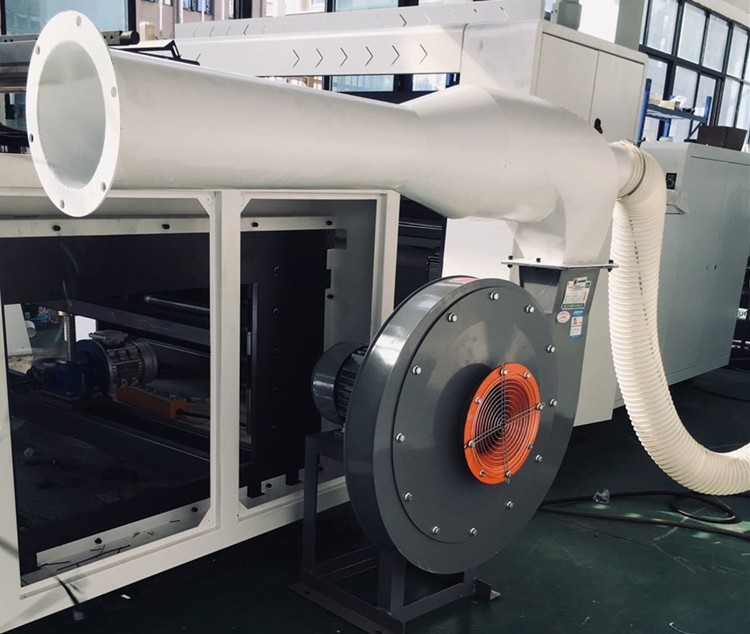

- 废边排出系统采用高压风机3KW
3)Slitting equipment:
- Use circular knife slitting equipment structure.auto adjust knife
need to be choosed
- Round knife use Shanghai, can freely adjust 10pcs
- Slitting Precision:±0.2mm
- the waste side discharge system adopts the high pressure fan 3KW
3.收卷装置
结构方式:双气胀轴收卷结构方式同时收卷
- 收卷轴采用键条式气胀轴(3英寸规格和6英寸规格) 各2条
- 收卷电机采用中国产上海丹马伺服电机 11KW
- 变频器采用国产宏远11KW 2套
- 传动方式:采用齿轮传动独立控制方式 2套
- 收卷最大直径:φ1000mm,
- 收卷上轴,下料采用自动卸料装置形式 1套
3.Rewinding equipment:
Structure way: use two air shaft rewinding
- Rewinding Roll use spline air shaft (3inch and 6inch Spec) 4pcs
- Motor useChina brand servo11KW 2pcs
- The inverter use 11KW vector control 2pcs
- Driver:Independent control gear transmission 2set
(5)Rewinding Diameter Maximum:1000mm
(6)Two Rewinding Shaft use automatic motor type unloading device
form 1set
5.控制部分:Control way:
采用连体式控制柜和配电箱集中控制 1套
- 该机的控制系统大致可分为主机速度控制,放卷张力控制,收卷张力调节,自动计米等由PLC集中控制,触摸屏采用台湾威纶,PLC采用德国西门子；
- 触摸屏采用10寸,可推拉式结构
- PLC计长；报警停车；自动定长.
- 可以予设分切长度停机
6.配套设施:(用户自行负责,不在厂家标配范围.有220v电压时,厂家只提供变压器转换)
- 电源:三相四线空气开关:电压380 50Hz
- 气源:空压机 6个气压
It’s electrical control box and power supply together on the
machine 1set
- Machine’s control system including main engineer speed control,
unwinding tension control,rewinding tension control, auto meter
count etc control by PLC, touch screen use WEINVIEW Taiwan, PLC use
Siemens Germany; and other control(Hydraulic pressure type)
- Touch screen adopts 10 inch,push-pull structure.
- PLC auto meter counter, auto stop when alarm,auto fixed length.
- It can auto stop when it reached the setting meter.
6.Extra Equipment:(buyer responsible for it)
- Power supply:3phase 4 wire switch; 22V 50HZ
- Air :air compressor
汇总电器表格主要配置:
| PLC系统 | PLC system | 德国西门子 | Siemens Germany |
| 触控屏 | control screen | 台湾威伦 7寸 | China Taiwan
WeinView |
| 牵引主电机 | main motor | 国产上海丹马伺服电机11KW 一台 | China shanghai danma servo 1set |
| 收卷电机 | rewinding motor | 国产上海丹马伺服电机11KW 两台 | China shanghai danma servo2sets |
| 变频器 | inverter | 中国宏远 | China farwind 3台 |
| 收卷气涨轴 | rewinding air shaft | 3英寸气涨轴两根 | 3"air shaft 2 pcs |
| 放卷架 | unwinding parts | 液压式无轴3-6英寸 | 3-6Hydraulic shaftness |
| 纠偏系统 | EPC | 国产定制型 | China |
| PLC功能 | PLC function | 自动计数,设定米数停机 | auto meter counter |
| 电气类 | Electrical | 法国施耐德,正泰
| French,Schneider;China Chint
|
