1.Main technical parameters
1. Maximum printing length: 250mm
2. Printing width: 180mm
3. Printing speed: 5-60m/min
4. Overprinting accuracy: ＜ 0.15mm
5. Total installed power: 6Kw
6. Overall dimensions: (L × B × H) 1680 × seven hundred and eighty
× one thousand two hundred and eighty
7. Weight: ≈ 618KG
2, Main structural functions and working principles
The structure of this machine includes discharge, corona discharge,
traction, first color printing, second color printing, oven,
slitting, and material collection. (As shown in the figure)

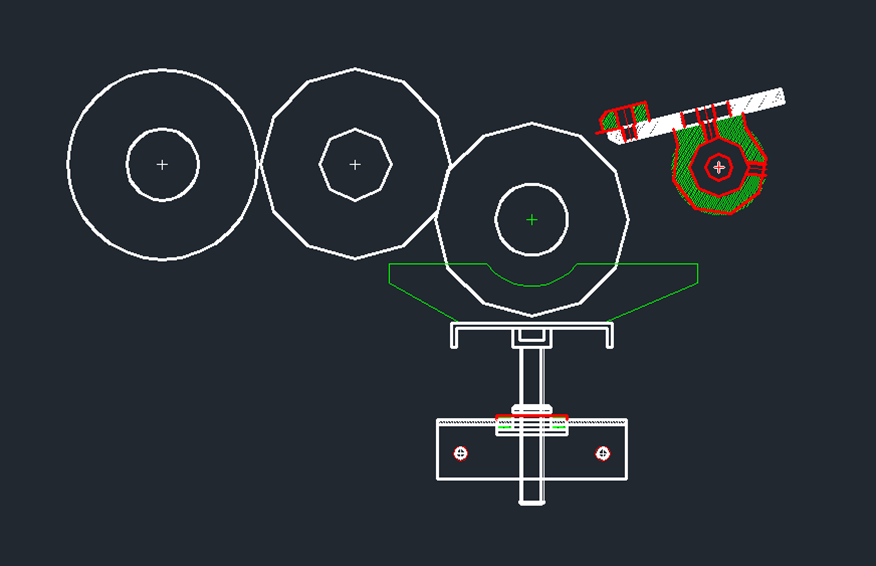

2.Ink supply mechanism
1. Lift the ink bucket. 2. Anilox. 3. Scraper. 4. Printing roller.
5. Backrest roller composition.
(As shown in the figure)

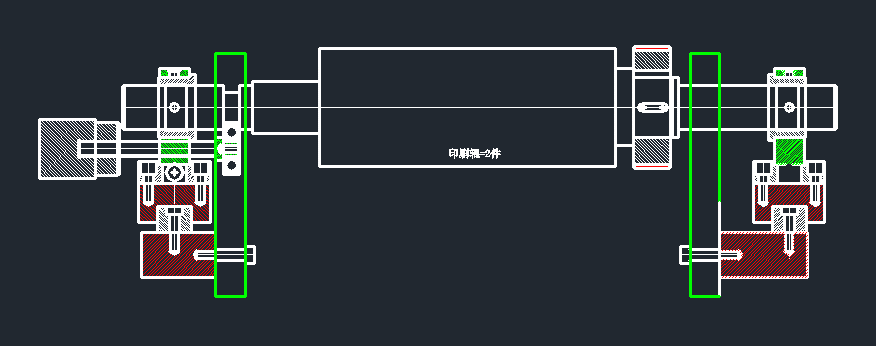

3.Chromatic mechanism
Color matching is composed of a planetary gearbox transmission
mechanism, which adjusts the planetary gearbox transmission left
and right to align the pattern up and down. Adjust the printing
rollers left and right to align the pattern up and down. (As shown
in the figure)
5.Oven mechanism
When the printed matter passes through the oven, the heat emitted
by the heating tube is blown out by a fan to dry the ink on the
surface of the printed matter. The temperature of the oven is
controlled by an intelligent temperature control meter and
thermocouple induction.
6, Winding device
The winding device is mainly used for winding products into drums.
He mainly has a reel. The power is driven by a motor to drive a
gear, and the sprocket drives the power to rotate the winding shaft
to achieve the purpose of winding. The tightness of the drum
depends on the adjustment of the nut and spring.
7, Machine maintenance and upkeep
In order for the printing function to work normally for a long time
and produce good printed products, the machine must be maintained
and maintained well. Operators must undergo pre job technical
training, not only familiarizing themselves with the flexographic
printing process, but also understanding and mastering the
structure, working principle, and normal operating methods of this
machine. To master the key points of adjusting various
institutions. Before starting the machine, it is necessary to
comprehensively inspect the condition, operability, and flexibility
of each part of the machine. Lubricating grease must be added to
each lubricating part. During the operation of the machine, the
police should inspect each operating component. If there are
abnormal conditions such as bearing noise and vibration, the
machine should be immediately stopped for inspection. Only after
solving the problem can the machine be started. After stopping the
machine, it is necessary to immediately turn off the power, clean
the machine, remove the ink hopper, release the glue roller, exit
the ink knife, and use cleaning agent to wipe the plate roller and
ink blade, and inject oil at each lubrication point.
8, Electrical control system
This machine adopts two 220V/50Hz AC power supplies. The control
system adopts 220V AC power. Please refer to the machine operation
panel for specific electrical switches and instruments. After the
installation of this machine is completed, start the main motor,
adjust the speed, make the main machine rotate slowly, and check
the direction of the main machine rotation.
The machine casing must be reliably grounded. Pay attention to
electrical safety.
