HJ-200+LST-4700/4700R Roll Feeding Flexo Printing Square Bottom Paper Bag Making Machine#200pcs/Min Paper Carry Bag

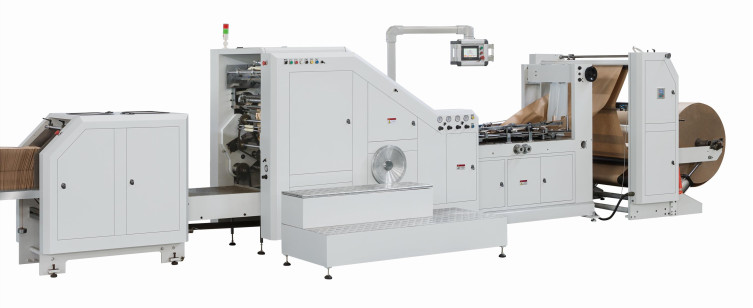

HJ-200+LST-4700/4700R Roll Feeding Flexo Printing Square Bottom Paper Bag Making Machine

Introduction:

The paper bag making machine from the roll paper to the printing, side gluing, roll folding, roll paper cutting, bottom

folding, bottom gluing, bottom forming, bag formation at a stroke. This machine controls by PC programmable servo

motor through the human-machine touch screen interface. It can produce various of specifications paper bags. This

machine have advantages of high speed, quickly replace the paper bag specifications, more wide range adjusting

etc. It is an ideal machine for producing food bag, shopping handles bag.

Features:

The human-machine touch screen interface, the work condition can be shown in real- time.

Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.

Material lifting adopt pneumatic lift structure.

Automatic constant tension control system. The tension will be just right from beginning to end.

Double photoelectric sensor limit automatic correction control system and deviation rectification stability,

energy saving, long life.

Thumb buttons, appressed bottom cutting device, bag type have many choices.

Don't stop machine adjust double bottom structure, the adjustment will become more intuitive, more simple,

more time saving.

Glue roller air defense coating control, avoid gluing on besmear brushs hub surface directly, reduce

unnecessary trouble.

Accurate color tracking system, automatic alarm

prompt when color is wrong.

10. ink-ring sealed scraping knife scraping.(Except

R and J type)

11. ink Ceramic Anilox roller, high speed dot rate,

screen printed layered, stronger(. Except R and J

type)

12. Using 99mm large diameter rubber roller to

uniform ink and anilox roller to transfer ink.(Only

R and J type)

13. button-360 ° continuous and adjustable

longitudinal register device

Technical Parameter:

Type

LSB-200+LST-4700R

Bag Width(W)

80-200 mm

Bottom Size(H)

50-105 mm

Bag tube length(C)

190-370 mm

Bag Length(L)

L=C－(H÷2＋15~25)

Max.Speed

260 pcs/min

Paper Thickness

45-140 gsm

Paper Roll Width

280-630 mm

Max.Roll diameter

1100 mm

Reel inner diameter

76 mm

Printing Color

4 Color

Printing Width

700 mm

Printing Length

180-800 mm

Max.Printing Speed

120 m/min

80 m/min

HJ-200+LST-4700/4700R Roll Feeding Flexo Printing Square Bottom Paper Bag Making Machine#200pcs/Min Paper Carry Bag

Overprint Precision

±0.15 mm

Thickness of Plate

1.7 mm

Total Power

14 kw

10kw

Weight of Machine

5500 kg

Overall

10600×1400×1850 mm
