Economic Six Color Central Drum Flexo Printing Machine 6 Color UV
DIE CUT SLITTING SERVO Auto Sticker Label Flexographic
Economic Six Color Central Drum Flexo Printing Machine 6 Color UV
DIE CUT SLITTING SERVO Auto Sticker Label Flexographic
Economic Six Color Central Drum Flexo Printing Machine
High Speed Central Drum 6 color Plastic Film Flexographic Printing
Machine
Feature:
1. Method:Central impression for better color registration. With
the central impression configuration, The material to be printed is
supported by the cylinder, Greatly improving color register,
Especially with extensible materials.
2. Structure:Wherever possible, parts are commonized for
availability, Wear-resisting design.

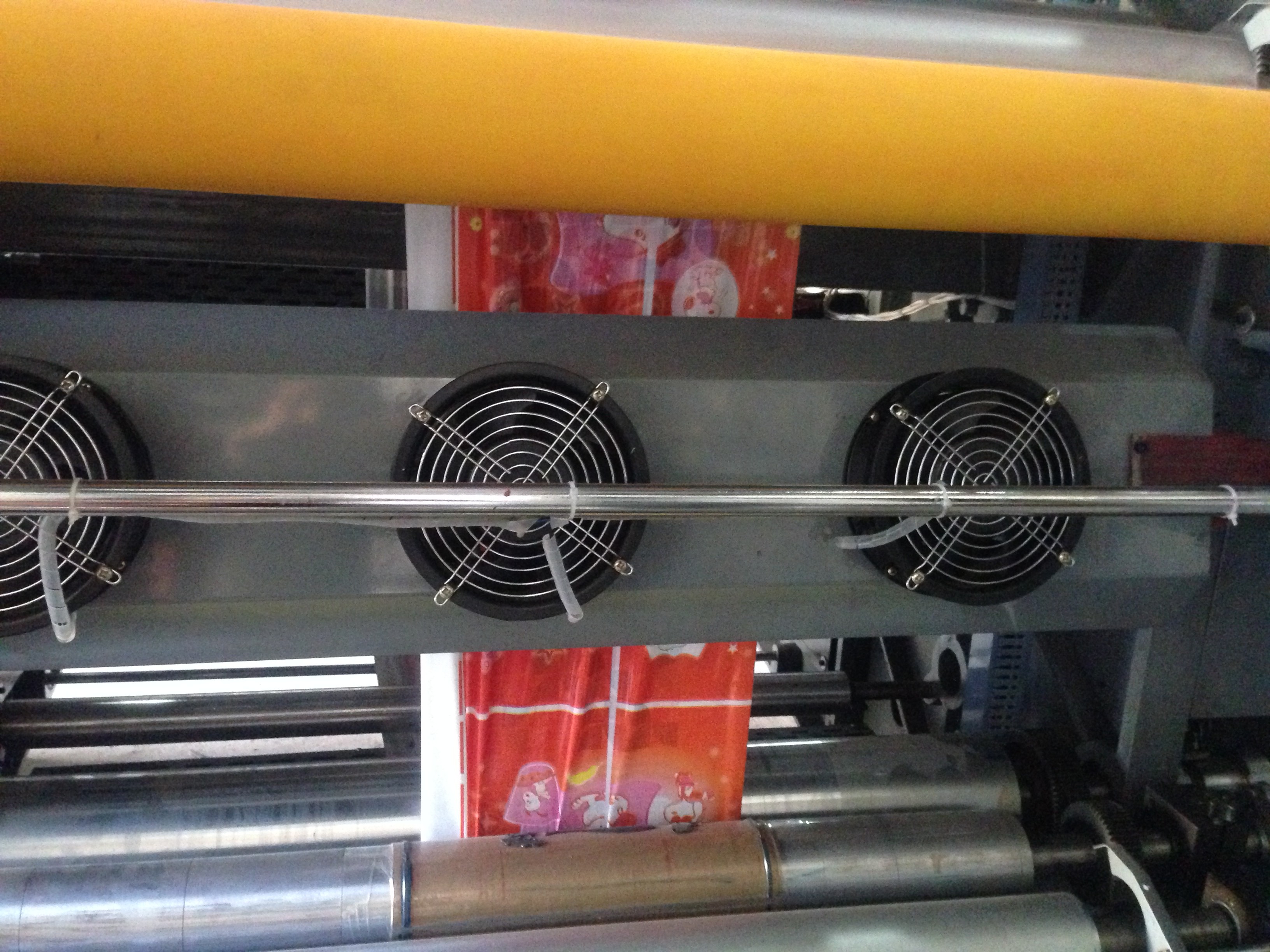

3. Dryer:Hot wind dryer, automatic temperature controller,
Separated heat source.
4. Doctor Blade:Chambered assembly for high-speed printing.
5. Transmission:High performance taiwan motor with digital
frequency inverter and encoder buttons are placed on both control
chassis and body for operators' convenience.
6. Rewind:High performance Taiwan motor with diaphragm air cylinder
for stable web tension.
7.Color Registration:Push button-controlled in 4 directions.
8.Plate Mounting:Button-controlled fine-adjustment for oblique
plate mountin.
9. Gearing of Printing Cylinder:Metric, M2, Circular pitch 7.26mm,
and 30-degree helical gears.
Main advantage:
Main Taiwan Motor with Driver.
Un/Rewinder: with Magnetic powder and automatic tension controller
Unwind Tension Controller with Powder Brake.
Rewind Tension Controller with Torque Motor.
Laser-Engraved Ceramic Anilox Rollers(400 cells/Inch); One For Each
Color.
Chamber Doctor Blade for Each Color.
Ink Circulator with Tank for Each Color.
Air Shafts for Web Rollers.
CI Drum with water Cooling System. (optional)
Overhead Cranes for Wed Rolls. ( optional)
Plate Cylinder(up to 400 mm) with Gear for Each Color.
Main Technical Parameter
| MODEL | PRINTING WIDTH | MATERIAL WIDTH | REPEAT LENGTH | PRINTING SPEED |
| HJ-6600 | 600MM | 700MM | 300~900MM | 150M/MIN |
| HJ--6800 | 800MM | 900MM | 300~900MM | 150M/MIN |
| HJ--61000 | 1000MM | 1100MM | 300~900MM | 150M/MIN |
| HJ--61200 | 1200MM | 1300MM | 300~900MM | 150M/MIN |
| HJ--61400 | 1400MM | 1500MM | 300~900MM | 150M/MIN |
| HJ--61600 | 1600MM | 1700MM | 300~900MM | 150M/MIN |
Optional Spare part:
Plate Cylinders of Various Size.
Unwind Web Guiding System.
Rewind Web Guiding System.
Ink Viscosity Regulator.
Printed Graphics Inspection System.
Human-Machine Interface.
Ceramic Anilox Rollers. ( 400 Cells/Inch And Above)
Air Compressor.
Turret Un/Rewind for Non-Stop Printing.
Full width Double-Sided Printing.
Technicians abroad Install and Training Expense
FAQ:
1.Q:Are you machinery factory or trading company?
A:Yes,We are machinery factory,and we are professional manufacturer
for 25 years
and focus on bag making machine,printing machine,film blowing
machine,etc.
and we also have one trading company
2.Q:Where is your factory Located? How can we visit it?
A:Our factory is located in Ruian City,Zhejiang Province,China
From SHANGHAI City by flight is 40minutes,by train is 4hours.
From GUANGZHOU City by flight is 2hours.
3.Q:How many years guarantee?
A:In usually,we have given customer for one years guarantee.
4.Q:What is your delivery time?
A:About 30-40 days
5.Q:What`s the payment method?
A:We can accept T/T,L/C,Western Union,Moneygram, Etc.
6.What is your after-sale service ?
A:We will send our professional technician to install and test the
machine.
