2 Color Alum Foil Flexographic Printing Machine Press impresora flexografica 1 color
Introduction
Introduce sensitization resin as flexible printing plate. It is a
kind of ideal printing equipment for producing paper packing bag
for good, supermarket handbag, vest bag and clothes bag,etc.
Printing materials as following:
1.Polyethylene, polyethylene plastic film printing
2.Bag(packing bag for food, supermarket handbag, vest bag and
clothes bag printing
3.Roller paper and craft paper printing
4.Pp woven bag , pvc film, bopp film, printing
5.Laminated bag rolling printing
6.Non woven rolling printing
7.Rice bag pp woven printing
8.Paper printing
Note:Different printing material , machine some parts design
different. Pls kindly show Printing material when inquiry.
Main Features & Advantages
1.Machine form: use big gear drive and register color the color more accurate.
2.The structure is compact.The parts of the machine can
interchanges standardization and easy to get.And we choose low
abrasion design.
3.The printing cylinder is really simple.It can save more time and
cost less.
4.The printing pressure is smaller.It can decrease the waste and
make service life longer.
5.Print many kinds of material include various thin film rolls.
6.Adopt high quality ceramic anilox roller to increase the printing
effect.
7.Adopts imported electric appliances to make the electric circuit
control stability and safety.
8.Machine frame:75MM thick iron cast.No vibration at high speed and
have a long service life.
Machine photos
Product Parameters
Model | 2-600 | 800 | 1000 | 1200 | 1400 | 1600 |
Max. Material width | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm |
Max. Printing width | 560mm | 760mm | 960mm | 1160mm | 1360mm | 1560mm |
Printing color | 2 colors ( PC : 2+0 , 1+1 ) |
Printing length | 191-1060mm |
Printing cylinder way | Hydraulic control up and down |
Mechanical speed | 90m/min |
Printing speed | 80m/min |
Anilox roller | Metal:100-300LPI / Ceramic: 200-800LPI |
Register precision | Longitudinal:±0.25mm; crosswise:±0.25mm |
Unwind/rewind dia. | Φ700mm |
Dry system | Electric heating |
Machine weight | 1800kg | 1900kg | 2000kg | 2100kg | 2200kg | 2300kg |
Machine power | 10kw | 12kw | 14kw | 15kw | 16kw | 18kw |
| 2.7×2×2.3m | 2.7×2.2×2.3m | 2.7×2.4×2.3m | 2.7×2.6×2.3m | 2.7×2.8×2.3m | 2.7×3×2.3m |
Machine Also can made as client requirement.If you need other width Size or high speed machine, pls kindly
contact us directly. |
Optional Parts1.Various size of Printing cylinder
2.Double unwinder/rewinder
3.Automatic pneumatic loading
4.Automatic pneumatic unloading
5.Crane:Manual or electric
6.Ceramic Anilox Roller
Our Service :
1. Purchase Service
We have a specialized and efficiency working team. If you are new
on the Plastic Machinery area, Some samples of your products could
be show to us will be appreciated ,we will give you specialized
suggestion of whole work .
2. Shipping Service
We have a specialized and independent department which just for
shipping the buyer's goods .The workers are knowing T/T, L/C Items
very well. All Exported documents could be made perfectly.
We cooperated with the most famous shipping company in China also.
They could provide the best and economic shipping ways to the
buyer's port.
3.Installation and Training Services
Installation Services are available with all machines. We will
dispatch technician to The Buyer's factory to installation and
preoperation of machines .But the buyer need to supply the round
trip tickets ,food ,hotel and other cost.
Training on our factory also be welcome.
4.After Sales Service
Our machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box
together with machines.
Any parts broken, Just a pictures or a videos.Then new free parts
will reach within 3-7 Express working days .
If need know more about our machines/price/service:
Detailed Photos
Unwind and rewind part:
Manual single unwinder and rewinder, with 76mm diameter air shaft.
Unwinder and Rewinder Part:
Auto magnetic brake 5 kg for both unwinder and rewinder.
Unwinder and rewinder part:
With auto tension and EPC for unwider,
With auto tension for rewinder.

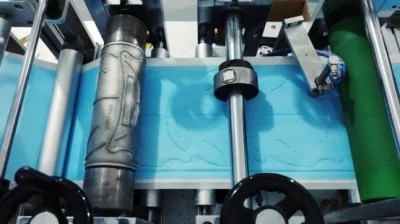

Printing and transferring parts:
With single doctor blade and metal anilox roller.
Anilox roller is hexagon design with hard chrome
Drying Part:
The oven length is 0.5,eter. The ink will dry very faster.
Printed Samples
