80m/Min Digital Flexo Printing Machine 4-22 Colors For Shoe Face Clothes PVC Sheet

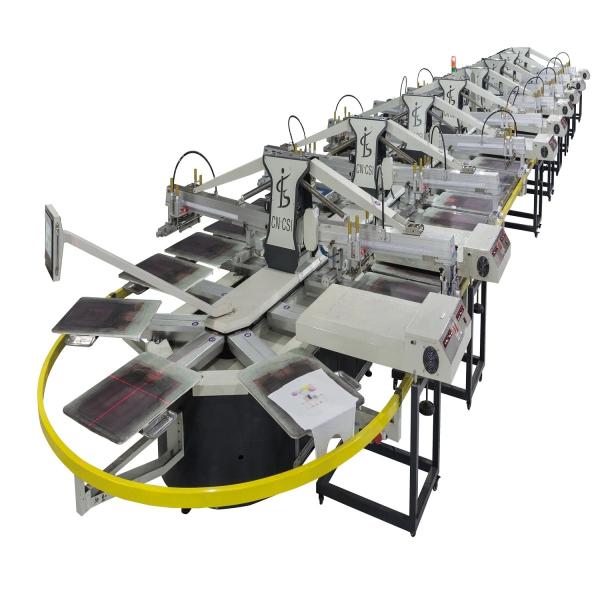

Spo Automatic 4-22 Colors Oval Silk Screen Printer for Shoe Face Clothes PVC Sheet

Product Description

Description:
Oval type automatic Screen printing machine is based on rotary screen printing machines,its performance and printing process is very well.The machine adopts modular design, high-strength aluminum alloy structure, the main rotation system adopt high-precision servo drive to assure the fast and stable operation,with the features of accurate printing, reliable performance, easy operation. Suitable for water-based ink, plastisol ink, Solvent ink and other printing processes, standardly configurated with flocking function.It's best for pieces and various garment printing, and also flocking processing.

Control system:
1.Man-Machine interface and PLC system ,self-diagnosis.
2.Language can be exchanged between Chinese and English by Touch screen , and the help simplifies the process of operation and training.
3.Real-time display of production speed to more clearly control the operating costs.
4.four operation modes: match mode, preheat platen, automatic cycle, single cycle.
Printing platen:
1.Adopt the high strength and high-temperature resisting aerospace aluminum plate
2.Installing and replace is very rapid.
Printing station:
1.Each station can be controlled individually and be operated work or stop easily,also can control the entire equipment ON/OFF.
2.The speed and pressure of squeegee is independently adjustable.
3.Floodbar and squeegee can be fixed and took off without any tools.
4.The stop position of print head can be set freely;
5.AC drive system, stepless speed regulation.
6.Screw adjust position, accuracy±0.05mm
7.Printing times and route can be set free.
Rotating System:
1.Servomotor drive, running precise, high-speed, stable.
2.Multiple speed can be customized according to user demand.
3.Forward and reverse.
Module Expansion:
1.Customers buy the printing machine with the suitable numbers of stations according to demand.
2.For further needs,you can quickly and easily enlarge the machine in every two-station units.
Design & Construction:
1.High-strength, high-precision alloy aluminum structure,simple,lightweight,stable and secure;Enclosed stainless steel countertops ensures the safe operation and easy clean.
2.Modular design makes the site installation quick and future expansion easy.

Technical Specification:

Model	O-6/24	O-16/54
Print Color	6	16
Stations	24	54
Max Print Area	500*700mm	500*700mm
Max Frame Size	700*900mm	700*900mm
Air Consumption	0.6mpa/0.8mpa	0.6mpa/0.8mpa
Main Motor Power	1.5KW	1.5KW
Each Print Motor Power	0.4KW	0.4KW
Totally power	4.5KW	8.2KW
Max.Speed	1500pcs/h
Voltage	380V/3PH/50HZ	380V/3PH/50HZ
Dimension	9168035601680mm	2460035601680mm
Weight	3300KGS	5800KGS

Spo Automatic 4-22 Colors Oval Silk Screen Printer for Shoe Face Clothes PVC Sheet
