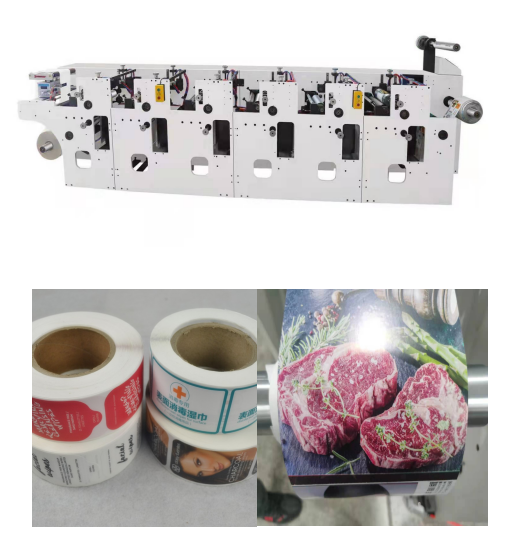

HJ6-520 uv Flexo printing machine
Feature:
1. From the discharge to the receipt of the short distance.
2. The ceramic stick is equipped with a scraper, which is printed
and moist, and has a clear color.
3. Repeatedly printing the circumference of 190.5-635MM, filling
the blank of the cascading flexographic printing machine, the
slanting trademark printing machine, the petal printing machine and
the printing length.
4. The use of gear color to solve the 360-degree coloring device
gap, assembly, wear, etc., affecting the color accuracy and
printing instability.
5. From left to right: coil feeding, printing, UV curing, film
cutting, laminating, slitting,winding a coherent completion .
6. Water-based ink(UV) printing, pollution-free, environmentally friendly, printing
speed varies according to the network cable, the speed is also
different, the fastest speed of printing labels is 90 meters per
minute.
7. Printing bills, labels, cardboard, high-grade stickers, clothing
tags, etc.
8. Printing materials: paper 20~250g/m2 self-adhesive soft coil and
other materials.
9. Process:
1 discharging, 2 automatic constant tension, 3 scraper, 4 printing
unit, 5 traction, 6 automatic constant tension, 7 center receiving
Technical parameters
Printed form |
Flexo |
| Printing speed | 10m/min－80m/min |
| Mechanical speed | 10m/min-100m/min |
| Maximum width of substrate | 520mm |
| Printing width | 50-520mm |
| Printing circumference | 190.5-635mm |
| Plate thickness | 1.7/ 2.28mm(special advance notice) |
| Anilox roller specifications | Φ85*550 |
| Aluminum guide roller specifications | Φ70*550 |
| Printing bottom roller | Φ85*550 |
| Unwinding maximum diameter | Φ550 mm |
| Maximum winding diameter | Φ550 mm |
| Oven maximum temperature | 80℃ |
| Substrate core diameter | 74mm |
| Total power of the whole machine | 40KW |
| Drying heat source | electric heating |
| Machine weight | 4500KG |
| Dimensions | 5800(L) x 1500 (W) x 1200(H)mm |
| Body color | White (special advance notice) |
The machine configuration:
1. Unwinding device:
1)
Single arm center roll up
2)
Maximum diameter of unwinding: Φ500 mm
3)
Inflatable shaft specification: 3”
4)
Number of inflation shafts: 1
5)
Tension control range: 0-50kg/
6)
Tension control range: 5KG
7)
Analog Correction System 1 set
2. Printing unit
1)
Drive mode: geared motor drive, synchronous belt drive.
2) Printing plate shaft:
(1)Vertical color: manual
(2)Horizontal color: manual
3) Overall composition: plate roll, scraper, ink tray, anilox roller.
4)Scraper: It adopts one-way scraper. The material of the scraper is
made of high-strength aluminum alloy profile, which is convenient
and quick to load, unload and clean.
4． Drying device:
1)
Each color group is equipped with LED
2)
The oven electric heating and fan intelligent control, the
temperature inside the oven can be controlled.
5． Winding device
1)
Winding method: One-arm center curl
2)
Paper core installation method: Expansion shaft expansion 1
3)
Inflatable shaft specification: 3”
4)
Tension control: Fully automatic tension control
5)
Winding tension range: 1-5KG/full width
6)
Single winding diameter: Maximum Φ500mm.
supporting facilities (users are responsible for their own)
Power supply: 3-phase *380V*50HZ, three-phase west line system
air compressor: 1KW (1 set)
electrical list
| Type | Main technical parameter | products | Remarks |
The power | Machine power main | 7.5KW 380V | Siemens | Total 1 |
Heating | LED 4.7KW/ | China GuangDong | 5 groups |
| 120W wind source | | 5 groups |
| Electrical appliances | | Schneider | |
| Ink roller moto | 60W 220V AC | China Shanghai | 5 groups |
| Total power | About 40 KW | | |
| Unwinding | PLC control Magnetic powder brake | RUIAN Haitai | Torque: 50 Nm |
| Discharge traction | PLC control Magnetic powder brake | | Torque: 2.5 Nm |
Color group | The temperature controller controls the oven temperature at a
constant temperature. Delay control of the ink roller and the mesh
roller to achieve a more reasonable requirement for the
homogenization.
|
| |
Rolling
|
Rolling center | | |
| PLC | | China XINJIE | 1 set |
| Rectifying device | | China KESAI | 1 set |
| The print roll | Specification optional | | 5 Article |
| Touch screen | 7 inch | China XINJIE | 1 set |
| Selection |
Die cutting station |
no die cutter | | 1 set |
The price
| Product | YT 6-520 UV Flexo printing machine |
| Quotation | |
| |
 |
Printing group |
 |
The plate roller |
 |
Rectifying device
|
 |
Curing group |
 |
Circular knife die cutting device |
 |
Control panel |
