150m/Min 4 Color Flexographic Printing Machine (Economic central
drum type)
150m/Min 4 Color Flexographic Printing Machine (Economic central
drum type)41600 High speed 4 colors paper roll flexo
Feature:

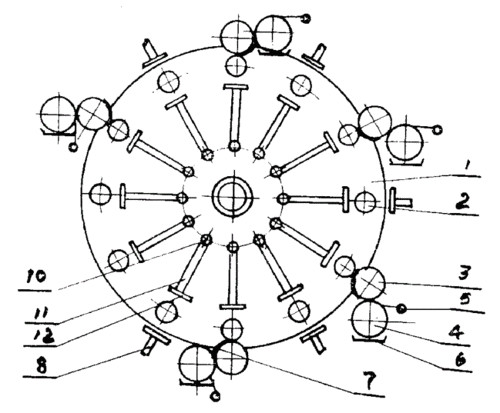

1.Method: Central impression for better color registration. With
the central impression configuration, the printed material is
supported by the cylinder, and greatly improving color
registration, especially with extensible materials.
2.Structure: Wherever possible, parts are communized for
availability and wear-resisting design.
3.Dryer: Hot wind dryer, automatic temperature controller, and
separated heat source.
4.Transmission: Siemens Motor, and encoder buttons are placed on
both control chassis and body for operations convenience.
5.Rewind: Micro Decelerate Motor, drive Magnetic Powder and Clutch,
with PLC control tension stability.
6.Gearing of Printing cylinder: repeat length is 5MM.
Technical Parameter :
| Model | HJ4-600 | HJ4-800 | HJ4-1000 | HJ4-1200 | HJ4-1400 | HJ4-1600 |
| Max. Material width | 650mm | 850mm | 1050mm | 1250mm | 1450mm | 1650mm |
| Max. Printing width | 560mm | 760mm | 960mm | 1160mm | 1360mm | 1560mm |
| Printing color | 4+0 |
| Printing length | 11.8''-31.4''(300-800mm) |
| Printing cylinder way | Pneumatic control up and down |
| Drive type | Big center Roller drive |
| Mechanical speed | 150m/min |
| Printing speed | 10-130m/min |
| Anilox roller | Ceramic anilox roller 4pcs: Shanghai murata brand 200-800LPI
Open type doctor blade 2pcs
Chamber doctor blade 2pcs with two diaphragm pump |
| Tension system | Automatic tension controller with magnetic powder brake |
| EPC | Web guide 1pcs |
| Register precision | Longitudinal:±0.15mm crosswise:±0.15mm; |
| Color register | By manual |
| Unwind/rewind dia. | Φ1000mm/Φ1200mm |
| Unwind/rewind way | Center unwind; Center rewind |
| Material holder | Air shaft 3'', 2pcs |
| Dry system | Electric heating |
| PLC human touch screen | 1set, Taiwan delta brand |
| Image inspect system | 1set, China famous kesai branad |
| Machine power | 34KW | 38KW | 42KW | 45KW | 55KW | 60kw |
Machine size
(L x W x H) | 6×2.2×3.0m | 6×2.4×3.0m | 6×2.6×3.0m | 6×2.8×3.0m | 6×3×3.0m | 6×3.2×3.0m |
Machine Also can made as client requirement. .
Different printing material , machine some parts design different.
Pls kindly show Printing material when inquiry.
Optional parts: need extra cost
1. Various size of printing cylinder
2. chamber doctor blade
3. Half width-double sides printing device
4. Color register: by motorized ( left and right, up and down)
5. Double unwinder /rewinder system
6. Automatic loading
7. Automatic unloading
8. shaftless for unwind
9. Servo motor for unwind/rewind
10. crane
11. plate mounting machine
12. ultrasonic anilox roller cleaning machine
Toolbox 1pcs: spare part for free
| 1 | Tool box | 1set |
| 2 | Phillip screwdriver | 1pcs |
| 3 | Slotted screwdriver | 1pcs |
| 4 | Inner Hexgam Spanner | 1set |
| 5 | Oil gun | 1pcs |
Machine picture:
Match chamber doctor blade & PLC & camera
200m/min speed central drum ( CI type) flexo printing machine:
Sample:
