250pcs/Min Square Bottom Paper Bag Machine 295-640mm

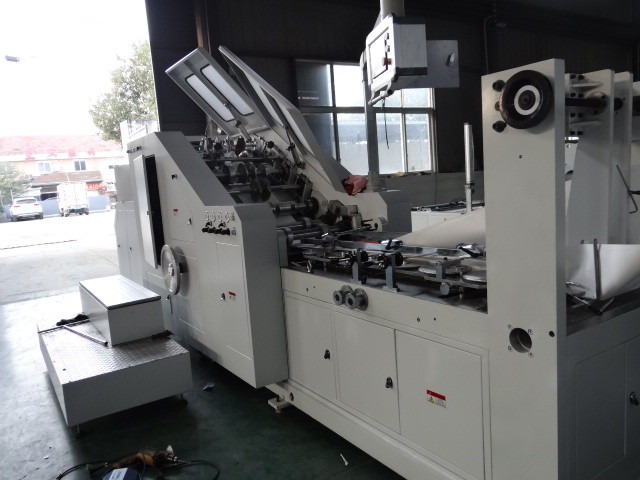

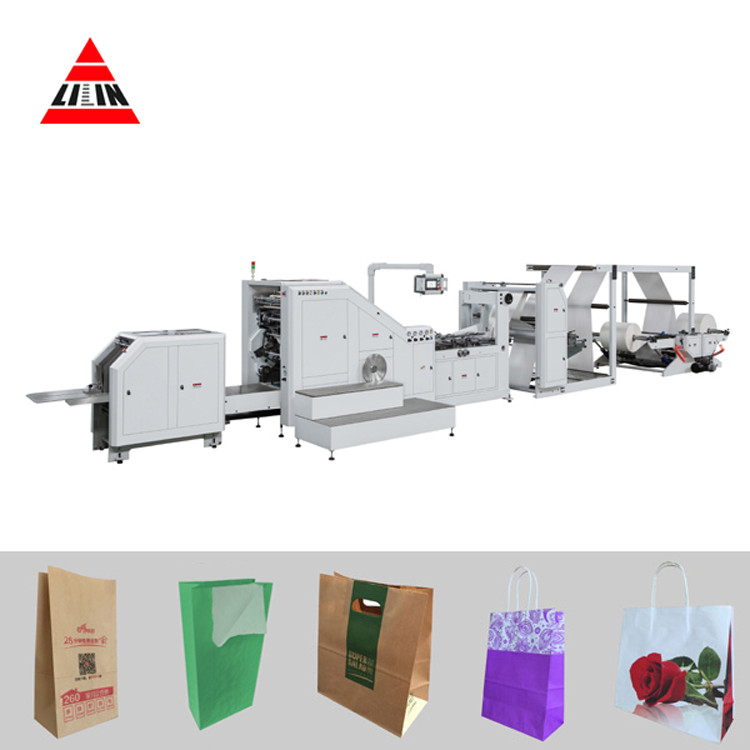

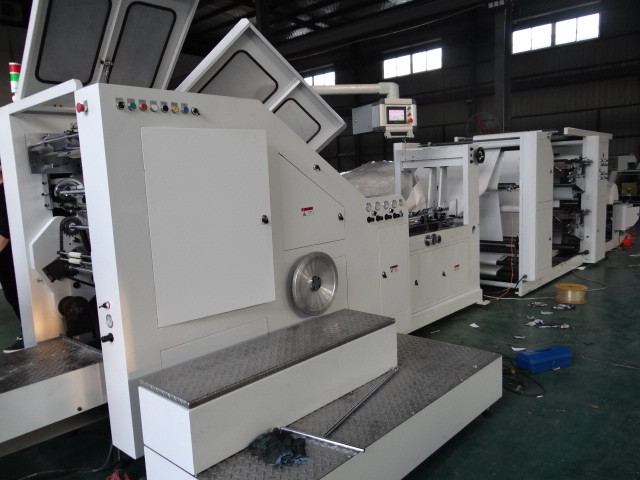

150 Automatic Block Bottom Paper Bag Making Machine

150 model paper bag making machine is designed to manufacture square bottom paper bags from paper roll in blank or printed. Side gluing, tube forming, cutting, bottom impressing, bottom gluing, bottom forming can be completed within one time by this machine. It is ideal equipment for making small paper bag for foodstuff bag, shopping bag and so on.

1. Equipped with Japan Mitsubishi servo system and SICK photocell for correction, tracking the printed material accurately, minimize the adjustment and preset time, increase the production efficiency.

2. Equipped with Mitsubishi electric control system, Mitsubishi motion controller (CPU), through the integration of and optical fiber to realize high speed and high precision, motion control,

3. Production flow test. The touch screen display, the operation function is clear and has good human-machine interface

4. Fault the automatic alarm, equipped with wall paper detector, avoid because plugging paper and damaged machine.

5. Automatic grease lubrication supply system, blocking alarm.

6. Equipped American VALCO cold spray adhesive system for bag side seal, ensure high-speed state side sealing, and adjust glue volume with mechanical speed automatic, save glue!

Technical information for 150 paper bag machine:

Face Width: 80-200MM
Bottom Width: 50-100MM
Cutt-off Lenth: 195-385MM
Roll Width: Max. 640MM Min. 295MM
Roll Diameter: Max. 1200MM
Max. Speed(bag/minute): 250PCS/M
PAPER Gramage(gr/m2): 38-130GSM
Power: 9KW
Weight: 5500KG
Machine size: 8600MM X 1500MM X 1650MM

250pcs/Min Square Bottom Paper Bag Machine 295-640mm

MODEL	150
Paper Roll Width	295-640mm
Cut-off Length	195-385mm
Face Width	80-200mm
Bag Bottom Size	50-100mm
Paper Thickness	40-130gsm
Roll Diameter	≤1200mm
Material Core Diameter	76mm
Max. Speed	250pcs/min
Total Power	9kw
Weight	≈5500kg
Machine Size	8600mmx1500mmx1650mm
