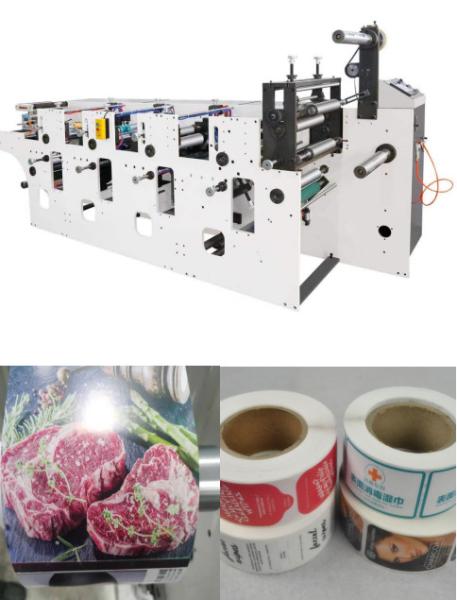

HJ 6-600 Flexo printing machine for woven fabric material and paper
rolls
Feature:
1. From the discharge to the receipt of the short distance.
2. The ceramic stick is equipped with a scraper, which is printed
and moist, and has a clear color.
3. Repeatedly printing the circumference of 190.5-635MM, filling
the blank of the cascading flexographic printing machine, the
slanting trademark printing machine, the petal printing machine and
the printing length.
4. The use of gear color to solve the 360-degree coloring device
gap, assembly, wear, etc., affecting the color accuracy and
printing instability.
5. From left to right: coil feeding, printing, curing, film
cutting, laminating, slitting,winding a coherent completion .
6. Water-based ink (UV ink) printing, pollution-free,
environmentally friendly, printing speed varies according to the
network cable, the speed is also different, the fastest speed of
printing labels is 90 meters per minute.
7. Printing bills, labels, cardboard, high-grade stickers, clothing
tags, etc.
8. Printing materials: paper 20~250g/m2 self-adhesive soft coil and
other materials.
9. Process:
1 discharging, 2 automatic constant tension, 3 scraper,
4 printing unit, 5 traction, 6 automatic constant tension,
7 center receiving
Technical parameters
| Printed form | Flexo |
| Printing speed | 10m/min－100m/min |
| Mechanical speed | 10m/min--110m/min |
| Maximum width of substrate | 600mm |
| Printing width | 50-600mm |
| Printing circumference | 190.5-635mm |
| Plate thickness | 1.7/ 2.28mm(special advance notice) |
| Anilox roller specifications | Φ85*600 |
| Aluminum guide rolle specifications | Φ70*600 |
| Printing bottom roller | Φ85*600 |
| Unwinding maximum diameter | Φ550 mm |
| Maximum winding diameter | Φ550 mm |
| Oven maximum
temperature | 80℃ |
| Substrate core diameter | 74mm |
| Total power of the whole machine | 24KW |
| Drying heat source | electric heating |
| Machine weight | 4000KG |
| Dimensions | 5300(L) x 1400 (W) x 1200(H)mm |
| Body color | White (special advance notice) |
The machine configuration:
1. Unwinding device:
1) Single arm center roll up
2) Maximum diameter of unwinding: Φ550 mm
3) Inflatable shaft specification: 3
4) Number of inflation shafts: 1
5) Tension control range: 0-50kg/
6) Tension control range: 5KG,
7) Analog Correction System 1 set
2. Printing unit
1) Drive mode: geared motor drive, synchronous belt drive.
2) Printing plate shaft:
(1)Vertical color: manual
(2)Horizontal color: manual
(3) Overall composition: plate roll, scraper, ink tray, anilox roller.
(4)Scraper: It adopts one-way scraper. The material of the scraper is
made of high-strength aluminum alloy profile, which is convenient
and quick to load, unload and clean.
4． Drying device:
1) 6 color sets with infrared drying
2) The oven electric heating and fan intelligent control, the
temperature inside the oven can be controlled.
5.Winding device
1) Winding method: One-arm center curl
2) Paper core installation method: Expansion shaft expansion 1
3) Inflatable shaft specification: 3”
4) Tension control: Fully automatic tension control
5) Winding tension range: 1-5KG/full width
6) Single winding diameter: Maximum Φ500mm.
supporting facilities (users are responsible for their own)
1,Power supply: 3-phase *380V*50HZ, three-phase west line system
2,air compressor: 1KW (1 set)
electrical list
| Category | Main technology | Product | Remarks
|
The power | Machine power main | 12KW 380V | Siemens | Total 1 |
| 120W wind source | | 6 groups |
| Electrical appliances | | Schneider | |
| Ink roller moto | 60W 220V AC | China Shanghai | 6 groups |
| Total power | About 24 KW | | |
| Unwinding | PLC control Magnetic powder brake | RUIAN Haitai | Torque: 50 Nm |
| Discharge traction | PLC control Magnetic powder brake | | Torque: 2.5 Nm |
| Color group | The temperature controller controls the oven temperature at a constant temperature. Delay control of the
ink roller and the mesh roller to achieve a more reasonable
requirement for the homogenization.
|
| |
Rolling
| Rolling center | | |
| PLC | | China XINJIE | 1 set |
| Touch screen | 7 inch | China XINJIE | 1 set |
| The print roll | Specification optional | | 6 Article |
| Ceramic anilox roller | Specification optional | | 6 Article |
| Selection | Slitting device | round knife, 4 pieces | | 1 set |
| CORONA | | China Ruian | 1 set |
| Tableaux | | China KASAI | 1 set |
| Reverse rack | | China Ruian | 1 set |
| Cold Laminating | | Home made | 1 set |
| Die cutting station | no die cutter | | 1 set |
The price
| Product | HJ 6-600 Flexo printing machine |
| Quotation | |
