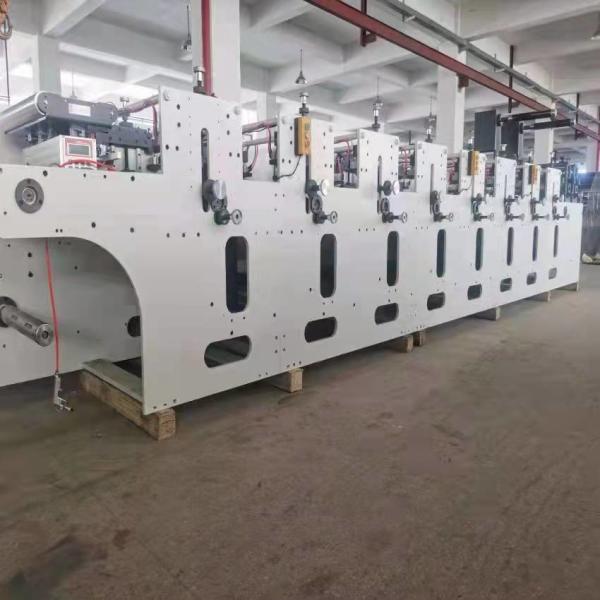

    10m/Min-110m/Min Flexo Printing Machine 6 Colour 320mm

    Ask Lasest Price
    Brand Name : haijing
    Model Number : HJ-DC
    Certification : CE
    Price : 5
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 9999 PCS per minute
    Delivery Time : 15
    • Product Details
    • Company Profile

    10m/Min-110m/Min Flexo Printing Machine 6 Colour 320mm

    YT 5-320 Flexo printing machine for plastic film rolls and paper rolls non woven woven fabric


    The machine configuration:

    10m/Min-110m/Min Flexo Printing Machine 6 Colour 320mm PE PP PVC POF Aluminum foil Paper Rolls Kraft Lines PLA PVA Roll

    1. Unwinding device:

    1) Single arm center roll up

    2) Maximum diameter of unwinding: Φ550 mm

    3) Inflatable shaft specification: 3

    4) Number of inflation shafts: 1

    5) Tension control range: 0-50kg/

    6) Tension control range: 5KG,

    7) Analog Correction System 1 set


    2.Technical parameters


    Printed formFlexo
    Printing speed10m/min-100m/min
    Mechanical speed10m/min110m/min
    Maximum width of substrate320mm
    Printing width50-320mm
    Printing circumference190.5-635mm
    Plate thickness1.7/ 2.28mm(special advance notice)
    Anilox roller specificationsΦ85*350*6
    Aluminum guide rolle specificationsΦ70*350
    Printing bottom rollerΦ85*350
    Unwinding maximum diameterΦ550 mm
    Maximum winding diameterΦ550 mm
    Oven maximum temperature80℃
    Substrate core diameter74mm
    Total power of the whole machine18KW
    Drying heat sourceelectric heating
    Machine weight3000KG
    Dimensions4100(L) x 1300 (W) x 1200(H)mm
    Body colorWhite (special advance notice)

    YT 5-320 Flexo printing machine


    1.Feature:


    1. From the discharge to the receipt of the short distance.


    2. The ceramic stick is equipped with a scraper, which is printed and moist, and has a clear color.


    3. Repeatedly printing the circumference of 190.5-635MM, filling the blank of the cascading flexographic printing machine, the slanting trademark printing machine, the petal printing machine and the printing length.


    4. The use of gear color to solve the 360-degree coloring device gap, assembly, wear, etc., affecting the color accuracy and printing instability.


    5. From left to right: coil feeding, printing, curing, film cutting, laminating, slitting,winding a coherent completion .


    6. Water-based ink (UV ink) printing, pollution-free, environmentally friendly, printing speed varies according to the network cable, the speed is also different, the fastest speed of printing labels is 90 meters per minute.


    7. Printing bills, labels, cardboard, high-grade stickers, clothing tags, etc.


    8. Printing materials: paper 20~250g/m2 self-adhesive soft coil and other materials.


    9. Process:

    1 discharging, 2 automatic constant tension, 3 scraper, 4 printing unit, 5 traction, 6 automatic constant tension, 7 center receiving


    2. Printing unit

    1) Drive mode: geared motor drive, synchronous belt drive.

    2) Printing plate shaft:

    (1)Vertical color: manual

    (2)Horizontal color: manual

    (3) Overall composition: plate roll, scraper, ink tray, anilox roller.

    (4)Scraper: It adopts one-way scraper. The material of the scraper is made of high-strength aluminum alloy profile, which is convenient and quick to load, unload and clean.


    4. Drying device:

    1) Each color group is equipped with strong wind + LED curing

    2) The oven electric heating and fan intelligent control, the temperature inside the oven can be controlled.

    5.Winding device

    1) Winding method: One-arm center curl

    2) Paper core installation method: Expansion shaft expansion 1

    3) Inflatable shaft specification: 3”

    4) Tension control: Fully automatic tension control

    5) Winding tension range: 1-5KG/full width

    6) Single winding diameter: Maximum Φ500mm.

    四,supporting facilities (users are responsible for their own)

    1,Power supply: 3-phase *380V*50HZ, three-phase west line system

    2,air compressor: 1KW (1 set)


    5.,electrical list

    CategoryMain technologyProductRemarks

    The power

    Machine power main7.5KW 380VSiemensTotal 1
    Heating2KW/组 LED5 groups
    120W wind source5 groups
    Electrical appliancesSchneider
    Ink roller moto60W 220V ACChina Shanghai5 groups
    Total powerAbout 25 KW
    UnwindingPLC control Magnetic powder brakeRUIAN HaitaiTorque: 50 Nm
    Discharge tractionPLC control Magnetic powder brakeTorque: 2.5 Nm
    Color group

    The temperature controller controls the oven temperature at a constant temperature. Delay control of the ink roller and the mesh roller to achieve a more reasonable requirement for the homogenization.



    Rolling


    Rolling center
    PLCChina XINJIE1 set
    Touch screen7 inchChina XINJIE1 set
    The print rollSpecification optional12 Article
    Ceramic anilox rollerSpecification optional5 Article
    SelectionLaminating device
    Slitting deviceround knife, 4 pieces
    Die cutting stationno die cutter

    6.The price


    ProductYT 5-320 Flexo printing machine
    Quotation10m/Min-110m/Min Flexo Printing Machine 6 Colour 320mm PE PP PVC POF Aluminum foil Paper Rolls Kraft Lines PLA PVA Roll
