Factory direct sales valve pocket cold cut seam integrated machine woven bag automatic cut and fold sewing machine

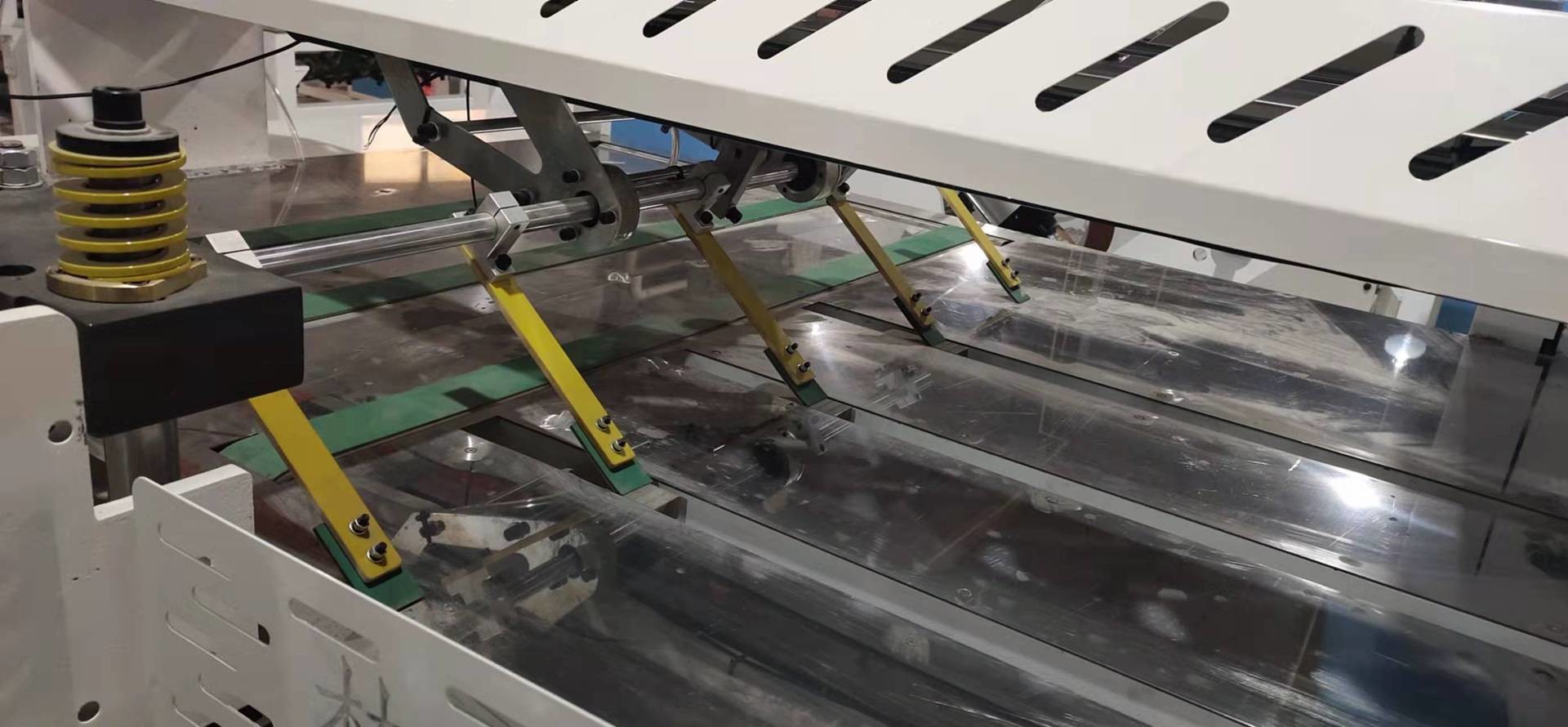

Automatic cutting and folding sewing machine

1. The machine adopts automatic device plc control, touch screen operation, servo drive, and can choose cold cutting or hot cutting model.

2, hot cutting: the second knife, bag mouth adhesion, fold size uniform, flat. The cutting knife is made of imported materials, the hot knife is not deformed, and the smoke-free environmental protection is realized.

3, cold cutting: the first knife imported materials, durable and practical.

4. The size of the fold is easily adjustable, and the length of the bag can be adjusted with one key.

5. Automatic feeding, automatic deviation correction, automatic benchmarking, automatic counting, batch feeding, disconnection alarm, fault and automatic shutdown prompt of joint

6. This machine is suitable for putty powder bags, calcium powder bags, single color bags, double color bags and laminated bags.

Main technical parameters

The diameter of the cylinder cloth is ≤ 1200mm

The width of the finished cut bag is 300-550mm

Finished cut bag length 500-920mm

Bag cutting speed 35-40mm

Bag cutting accuracy ±1mm

Total power 16KW

Installation size 9100*6200*1400mm
