Plastic Degradable Plastic Bag Making Machine Film Blowing Packing

Ask Lasest Price
Brand Name :	Haijing
Model Number :	HJ-1200 -1500
Certification :	CE
Price :	3900
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	999 sets per month
Delivery Time :	9 days

Add to Cart

Product Details
Company Profile

Plastic Degradable Plastic Bag Making Machine Film Blowing Packing

Plastic Degradable Plastic Bag Making Price Machine Film Blowing Machine Packing Machine Plastic Machine Bag Making Machine

Product Description

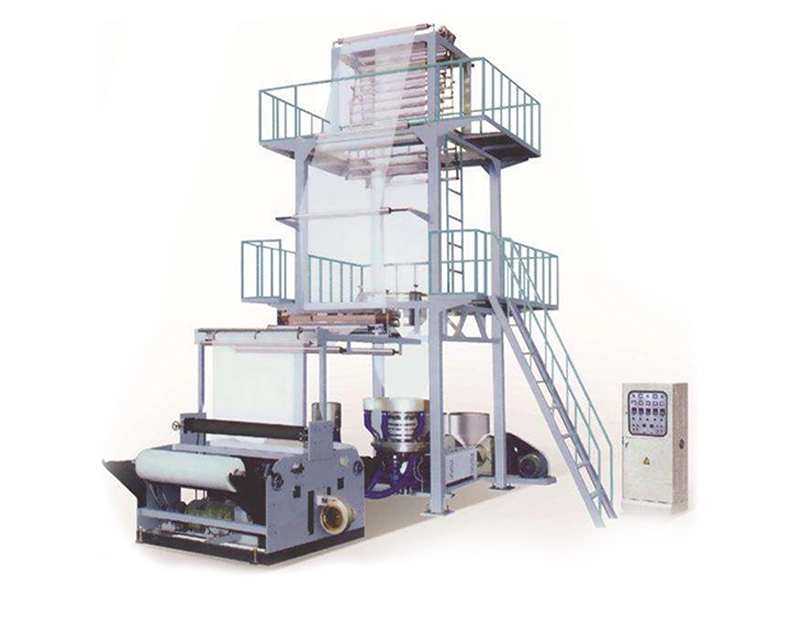

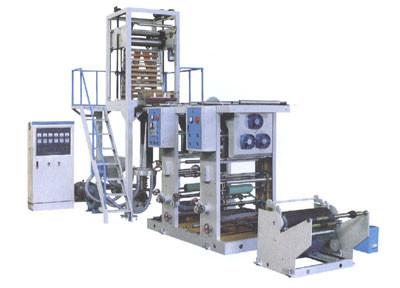

Product Pictures
Plastic Degradable Plastic Bag Making Price Machine Film Blowing Machine Packing Machine Plastic Machine Bag Making Machine

Plastic Degradable Plastic Bag Making Price Machine Film Blowing Machine Packing Machine Plastic Machine Bag Making Machine

Product Features

Uses:
It is used for blowing low-density polyethylene (LDPE), high-density polyethylene (HDPE), and linear low-density polyethylene (LLDPE). It is widely used in express bag special film, black inside and white outside, three-layer coextrusion. It can carry filling material and return material in the middle. It can greatly reduce the production cost and has a stronger pulling force. It is also an ideal product for producing printing substrate, and packaging film for export products and industrial products.

1. The tensile strength of the film can be significantly enhanced by the three-layer coextrusion composite film.

2. The barrel and screw of the extruder are made of high-quality alloy steel. After precision processing and nitriding treatment, the hardness of the extruder reaches the optimum value and is durable.

3. The auxiliary machine is equipped with a flat table to make the operation convenient and to prepare a stable foam ring.

4. Take up device: its power adopts torque motor, which can keep suitable tension, take up neatly and change coil conveniently.

5. Equipped with a meter counter and automatic alarm to control the weight and length of each roll at any time.

6. The automatic air supply system can ensure the film width and reduce people's trouble filling gas.

Product Parameters

model	HAIJING-45/650	HAIJING-50/850	HAIJING-55/1100	HAIJING-65/1400
Applicable raw materials	HDPE LDPE LDPE
Product width	300-600MM	300-800MM	400-1000MM	600-1200MM
Product thickness	0.009-0.05MM	0.009-0.05MM	0.009-0.05MM	0.01-0.05MM
Product thickness	0.02-0.15MM	0.02-0.15MM	0.03-0.15MM	0.03-0.15MM
Extrusion	55kg/hr	70kg/hr	85kg/hr	110kg/hr
Screw diameter	Φ45	Φ50	Φ55	Φ65
Screw aspect ratio	30:1
Screw material	SACM-645/38 CRMOALA
Barrel material	SACM-645/38 CRMOALA
Barrel cooling	250w	250w	250w	250w
monitor rate	15KW	18.5KW	22KW	37KW
Barrel temperature control	3	3	3	4
Average power consumption	18	26	31	45
Die head diameter	Φ60/80MM	Φ80/100MM	Φ100/120MM	Φ120/150MM
Die head diameter	Φ100/200MM	Φ100/250MM	Φ150/350MM	Φ150/450MM
temperature control	3 three
wind ring	1 one
fan	3 three	3 three	3 three	4 three
Traction roll width	650MM	850MM	1100MM	1400MM
Effective extraction of film width	600MM	800MM	1000MM	1200MM
Up and down liftable	700mm
fetch speed	10-100M/MIN	10-100M/MIN	10-80M/MIN	10-80M/MIN
Extract motor power	0.75KW	0.75KW	1.1KW	1.5KW
Coiling power	6KW	8KW	10KW	16KW
Coiling speed	10-100M/MIN	10-100M/MIN	10-80M/MIN	10-80M/MIN
footprint size	5.02.04.1M	5.02.24.5M	5.52.55.2M	5.82.86.3M

Sample Display

Factory shooting
Plastic Degradable Plastic Bag Making Price Machine Film Blowing Machine Packing Machine Plastic Machine Bag Making Machine

FAQ
1. What is your product range?
Paper production lines and plastic production lines, All the machines used in the process from raw material processing to product forming.

2. Are you a manufacturer?
Yes, we have been producing machines for more than 15 years. There are branch factories all over China.

3. When is the production time?
Normally about 30 days to order 1-5 machines.

4. If I want to get a quote, what information should I tell you?
--requires several machines
--Photos of the products produced
--Related size data

5. What are your strengths?
--Have 15 years of service experience with global customers.
--Quick Reply: Our team will reply to you as soon as possible.
--After-sale service: We have an after-sale department to solve your problems and deal with spare parts.

With rich OEM experience, we can provide customers with professional solutions. Click "Send" to get the latest offer now!
