Double Layer Rolling Flat and T-Shirt Bag Machine

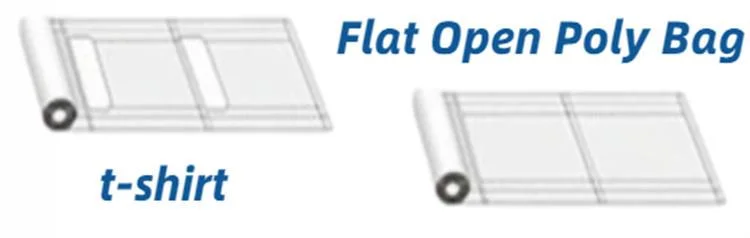

Applicable to Coiling bag making machine is suitable for the
production of HDPE/LDPE Flat Open Poly Bag and T-shirt bag.
Performance and Characteristice:
1. Computer automatic control aummalic counting and set counting
alarm,high eficiency, save manpower and time;
2. 2. From the roll film to the finished bag, it is completed
automatically in one time.
3. The step motor is fixed, photoelectric traciking, accurate and
smooth, and the feed is optoelectronic control.
4. The heat sealing and cold cuttng device is used, and the
itelligent temperature control sysem makes the sealing of the mouth
of the bag firm and smooth.
5. The main engine uses the frequency converter to control the
speed.
| Technical Specificatopm: |
| Model | DZB-500 | DZB-600 | DZB-700 | DZB-800 |
| BagWidth | 100-400mm | 100-500mm | 100-600mm | 100-700mm |
| BagLength | 300-1200mm | 300-1200mm | 300-1200mm | 300-1200mm |
| BagThickness | 0.008-0.10mm | 0.008-0.10mm | 0.008-0.10mm | 0.008-0.10mm |
| Speed | 40-120pcs/min*2 | 40-120pcs/min*2 | 40-120pcs/min*2 | 40-120pcs/min*2 |
| Motor Power | 1.1kw | 1.1kw | 1.5kw | 7.5kw |
| Electric Heating Power | 1.2kw | 1.6kw | 2.2kW | 2.6kw |
| Machinery Dimensions | 3300×1100×1500mm | 3300x1200×1500mm | 3300x1300×1500mm | 3300x1400×1500mm |
| Machinery Weight | 800kg | 850kg | 900kg | 1000kg |
1.
Are you factory or trading company?
We are factory specialized in plastic machine for many years ,all
of our engineer with more than 20 years experience.
2.
Where is your factory? How can i visit your company?
Our factory is located in Ruian city,zhejiang province, China. Its
about 40 minutes from shanghai by plane(4 hours by train).we will
pick you up on airport or station .welcome to visit our factory.
2
3.
How long is your delivery time?
On normal our delivery time is 30-75 days .if you need it ugently
,we can make your machine first.about 25 days.
4.
What's your warranty policy?
18 month guarantee and whole life maintance.
5.
What package do you use for the product?
Be Coated with anti-corrosion oil, and covered with plastic film,
wooden box package need extra cost.
6.
Does your factory provide installation service?
Our engineer can go to customer factory to installation . buyer
should prepare materials used to testing the machine in advance and
should be responsible for the cost of supplier's technician,
including round air tickets, visa cost, accommodation and salary
100USD/Day per person since the day start out until the day
arriving at factory.
7.
What are your terms of payment?
We accept T/T, L/C. western union.
8.
How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty
date.
